Best Quality GM MDI 2 GM MDI II Diagnostic Car Tools Multiple Diagnostic Interface
Unleash advanced diagnostic potential with the GM MDI 2, designed for comprehensive support across all GM vehicles.
Next-Generation Technology
Enhanced Connectivity and Speed
The GM MDI 2 provides faster data transmission and secure diagnostics with improved processing power and a new, robust design.
Comprehensive Vehicle Coverage
Supports diagnostics and programming for all GM vehicles from 1996 to current models, using GDS 2 and Tech2Win software platforms.
Professional and Reliable
Designed for accuracy and reliability in diagnostics, ensuring you get the right information when you need it.
Note:
This is the GM MDI 2 Hardware Only. It doesn't come with GM MDI 2 Software . This product is suitable for those customers who own the product software.
There are 2 Options for Choice: without WIFI function, with WIFI function. When you place an order, please choice the one you want.
If you want GM MDI2 with software, you can check this link to place an order:
https://www.cartooldeal.com/products/wifi-gm-mdi-2-mdi-ii-scan-tool-gm-diagnostic-tool-with-v2021101-gds2-tech2win-software-sata-hdd
GM MDI 2 Scanner Highlights:
High speed and low speed GMLAN
Supported Protocol: UART, Class 2, KWP2000,GMLAN (CAN)
Used for: Both China GM MDI USB version and GM MDI WiFi 2 version scanner
Supports online programming function with GM SPS Subscription
Easy to use: Insert the HDD(with software installed) into your laptop; the software can be used directly, no need activation.
For all GM CHEVROLET BUICK CADILLAC GMC HUMMER PONTIAC SAAB Vauxhall/Opel 16 pin vehicles from 1996 to 2022.
Multi-language: German, Spanish, French, Italian, Dutch, Portuguese, Vietnamese, Russian, Thai, Japanese, Korean, English, Chinese
GM MDI 2 Description:
The Multiple Diagnostic Interface 2 (MDI 2) is used by professional technicians as an aid in diagnosing and repairing automotive electrical and electronic systems. The MDI 2 is designed to connect the vehicle to a host PC computer application, which then functions through the MDI 2 for data transfer and Electronic Control Unit (ECU) reprogramming.
The newest pc-based GM Multiple Diagnostic Interface (MDI 2) offers increased processing power, security, and faster programming speeds on Global A and future
Global B vehicles.

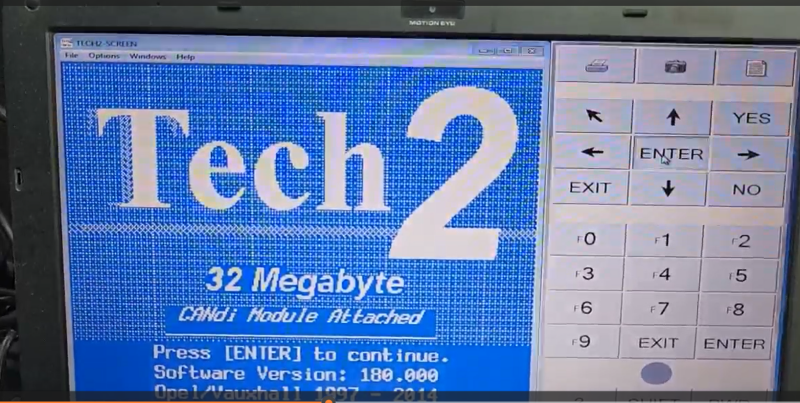

The MDI 2 supports diagnostic applications: GDS 2, Data Bus Diagnostic Tool, and Tech2Win.
It also supports Pass-Thru programming applications: TIS2Web–SPS.
It replaces the first generation MDI, introduced in 2007, for Pass-Thru programming on current GM models.
The MDI 2 is backward compatible, so it can be used to perform Pass-Thru programming on all vehicles built since 1996 by means of the J1962 connector using a DLC cable.

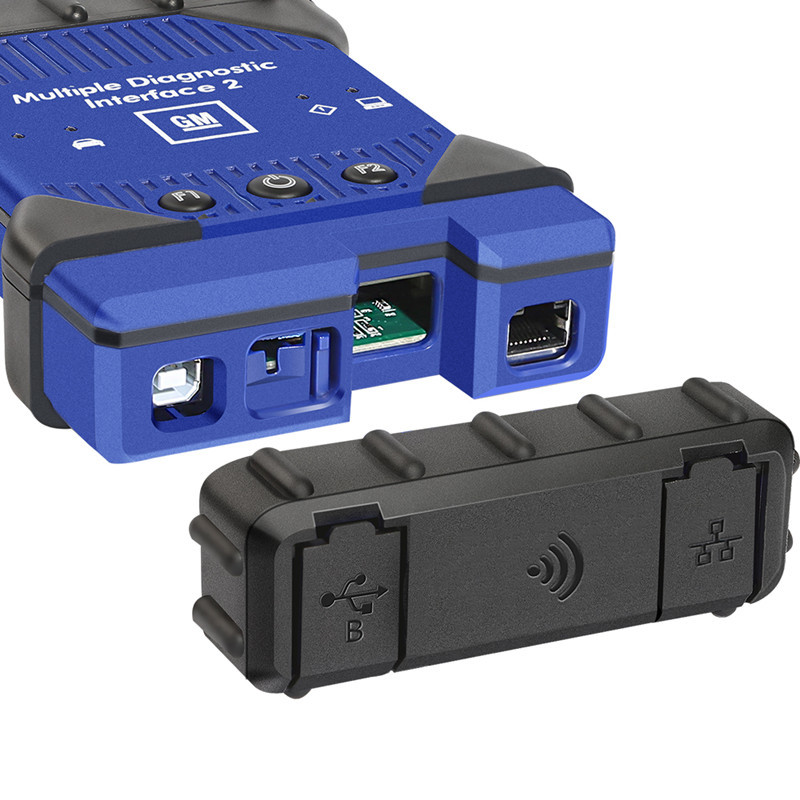

Connection between the MDI 2 and the PC can be accomplished via standalone (USB) and the dealership network (CAT5).
GM MDI 2 Scanner Function：
* Automatic vehicle recognition
* DTC reading and removal
* Complete list of live data streaming for all main ECU
* Recordable / playback of live data
* New software flash for existing ECU to fix drivability issues
* Programming and installation of new ECU (PCM, ABS, Instrument cluster, air bag, fuel pumps etc.,)
* Programming new keys
* Setting / removing speed limiters
* J2534 pass thru offering ECU re-flash and diagnostics for other vehicle manufacturers, when subscribed to their specified software
* More dealer specific functions
Difference Between Original MDI 2 and China MDI2:
|
|
|
|
|
Product
|
GM MDI2 (Original)
|
GM MDI 2 (China Version)
|
|
|
|
|
|
Original
|
Original from Dealer
|
China CARTOOLDEAL version
|
|
Price
|
More than $1200
|
ONLY $208
|
|
WiFi
|
Yes
|
Yes
|
|
Speed
|
Fast
|
Fast
|
|
Security
|
Good,it is relief
|
Good
|
|
Update
|
Yes
|
Update via CD
|
|
Operation System
|
You can try MDI2 software on any possible systems
|
ONLY Win 7 64 bit
|
|
Global TIS
|
Yes
|
Yes
|
|
GD2
|
Yes
|
Yes
|
|
Tech 2 Win
|
Yes
|
Yes
|
|
TISWeb-SPS
|
Yes
|
Yes,SPS programming for existing and future SGM Vehicle
|
|
OBDII Diagnosis
|
Yes
|
Yes
|
|
ECU Programming
|
Yes
|
Yes
|
|
Key Programming
|
Yes
|
Yes
|
|
Pass-Thru programming
|
Yes,done by TISWeb-SPS
|
Yes
|
|
Hidden Function Reflashing
|
Yes
|
Yes
|
|
Vehicle Coverage
|
Vauxhall Opel, Buick, Chevrolet1996-2017-future
|
all Vauxhall/Opel 16 pin vehicles from 1996 to 2017
|
What protocols does the GM MDI 2 support?
For immediate use — At present, vehicles have two buses on the 16 pin connector
(high speed and low speed GMLAN). The GM MDI communicates using all of the existing GM protocols, the same as the GM Tech2:
- UART
- Class 2
- KWP2000
- GMLAN (CAN)
Beginning with the 2008 model year vehicles, Pass-Thru will be the only programming method available. (Remote will continue to be available for previous vehicle

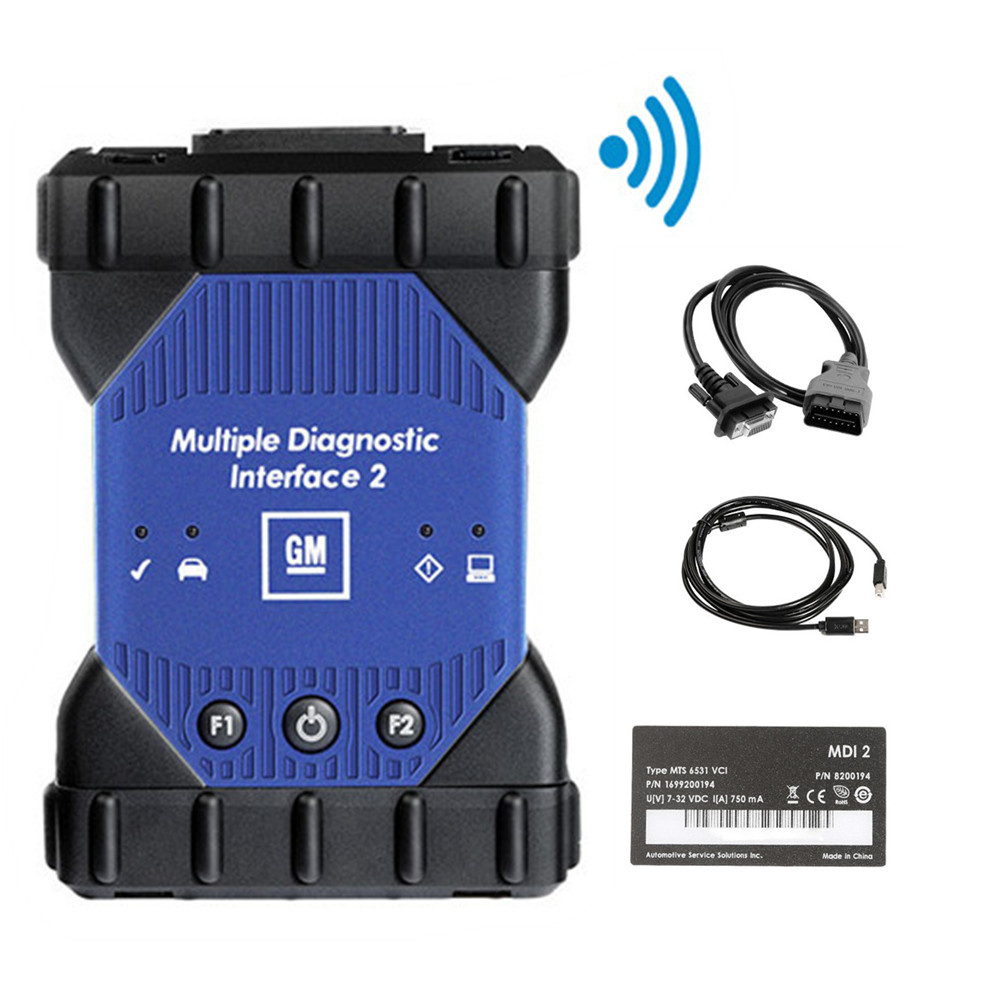

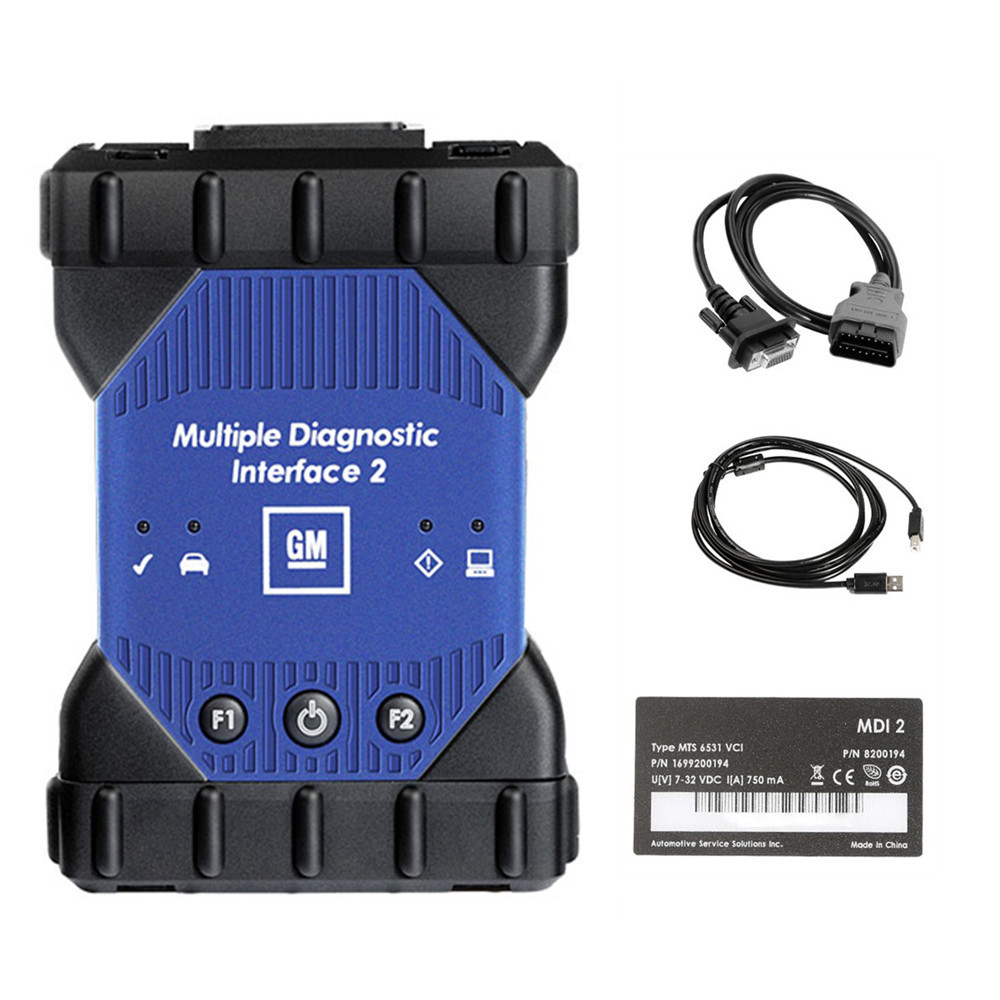

GM MDI 2 Package List:
1pc x GM MDI2 Main Unit

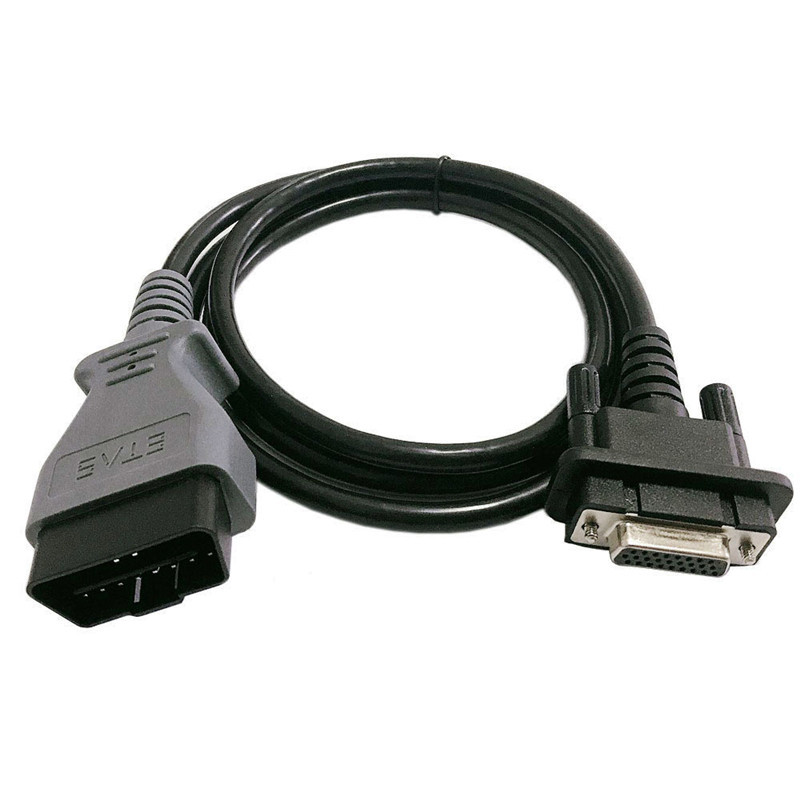

1pc x DLC Cable SAE J1962
1pc x 10-ft USB A to USB B Cable
