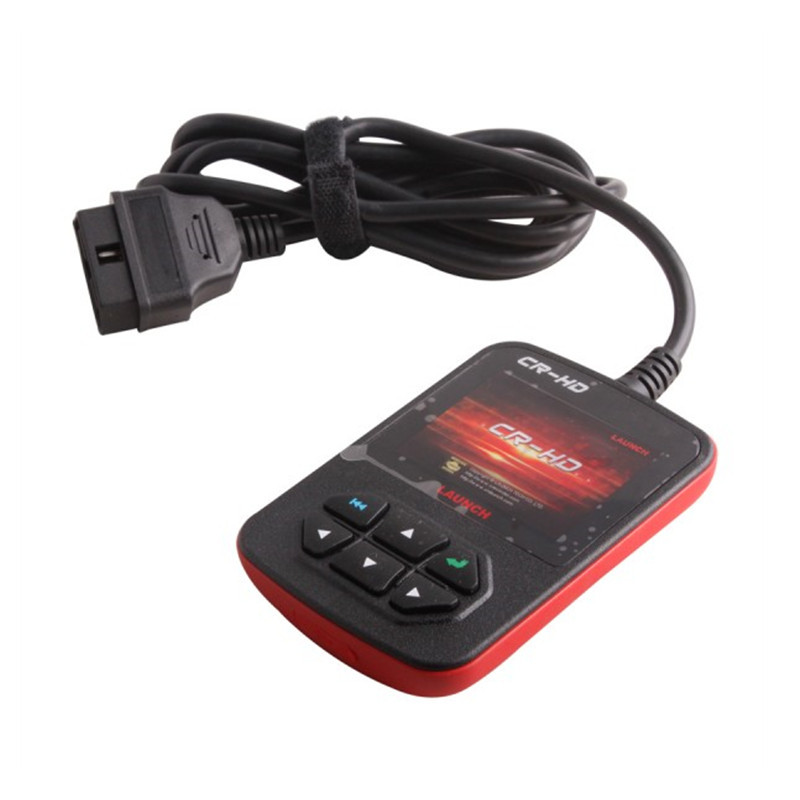

Launch Creader CR-HD Heavy Duty Code Scanner

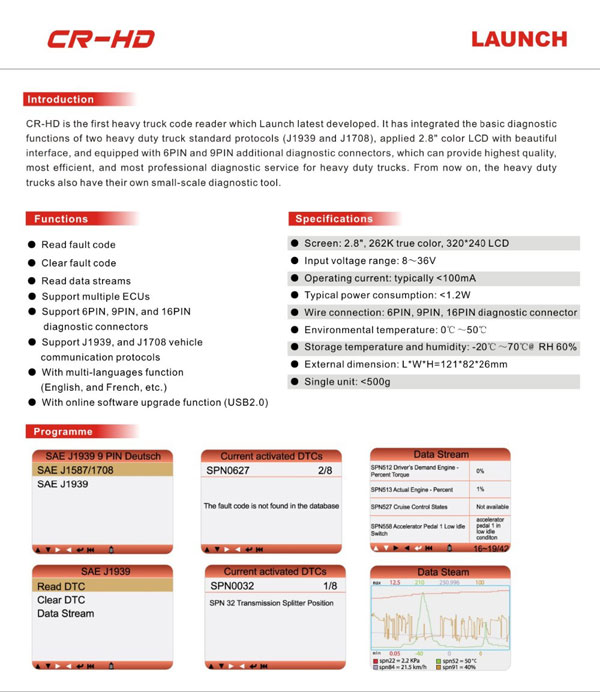

LAUNCH CR-HD is the first heavy truck code reader which Launch latest developed. It has integrated the basic diagnostic functions of two heavy duty truck standard protocols (J1939 and J1708), applied 2.8" color LCD with beautiful interface, and equipped with 6PIN and 9PIN additional diagnostic connectors, which can provide highest quality, most efficient, and most professional diagnostic service for heavy duty trucks. From now on, the heavy duty trucks also have their own small-scale diagnostic tool.
LAUNCH CR HD Truck Code Reader Functions:
1. Support heavy duty trucks in compliance with standard protocols ( J1587, J1939 and J1708)
2. Uniquely featured with battery power monitor function
3. Troubleshooting tips guide technicians to the root of problems faster, saving diagnosis and repair time
4. Read and erase generic codes (P0, P2, P3 and U0), manufacturer specific codes(P1, P3 and U1), and pending codes
5. Easily determine the cause of the Check Engine Light(MIL) and turn off Check Engine Light (MIL), clear troubles codes and reset monitors
6. Display DTC definition, freeze frame data, monitor and I/M readiness status (emissions), and vehicle information (VIN, CIN and CVN)
7. Read, store and playback live O2 sensor test data
8. Read PCM live data stream, with graphic data Display
9. Enhanced OBDII Mode 6
10. Work on all cars, mini vans and light duty vehicles (OBDII & CAN) from 1996 on and latest – European, American and Asian
11. Support all OBDII protocols: CAN, J1850 PWM, J1850 VPW, ISO9141 and KWP2000
12. With online software upgrade function (USB2.0)
13. Support 6PIN, 9PIN, and 16PIN diagnostic connectors

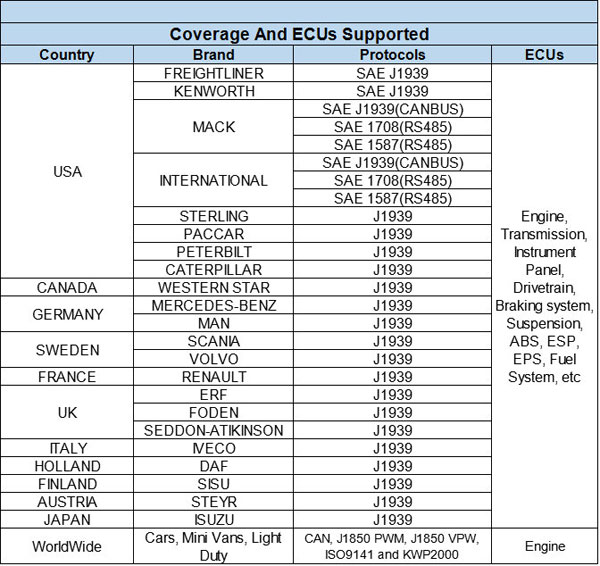

Launch Creader CR-HD Heavy Duty Scanner Vehicle List:
Heavy duty trucks in compliance with standard protocols ( J1578, J1939 and J1708)
Support Truck Vehicles:
for Cummings, for Detroit, for Caterpillar, for Freightliner, for International, for Kenworth, for John Deere, for Peterbilt, for Sterling, for Mack, for Mecedes Benz, for VOLVO and more diesel trucks;
Support Truck Systems:
engine, transmission, instrument panel, drivetrain, braking system, suspension, ABS, ESP, EPS, fuel system and etc
Support Cars Vehicles:
American Car from 1996 up to now
European Car from 2005 up to now
Asian Car from 2008 up to now
System Functions:
Read codes, erase codes, I/M Readness, Live data, EVAP Test, O2 sensor Test...etc
NOTE:
1. Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is especially design, so it may not compatible with some cars which do not support OBD2 protocol. especially Japanese and Korea car
2. No equipment can guarantee 100% support for all cars
3. Start the engine before testing
Parameters:
-Screen: 2.8", 262K true color, 320*240 LCD
-Input voltage range: 8~36V
-Operating current: typically <100mA
-Typical power consumption: <1.2W
-Wire connection: 6PIN, 9PIN, 16PIN diagnostic connector
-Environmental temperature: 0°C~50°C
-Storage temperature and humidity: -20°C~70°C@ RH 60%
-External dimension: L*W*H=121*82*26mm
-Single unit: <500g

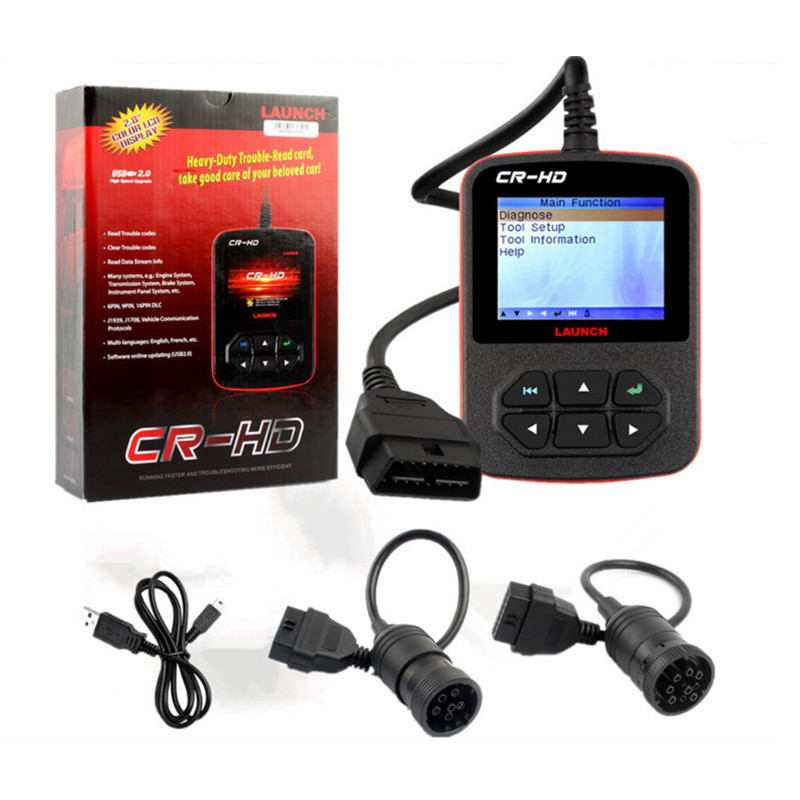

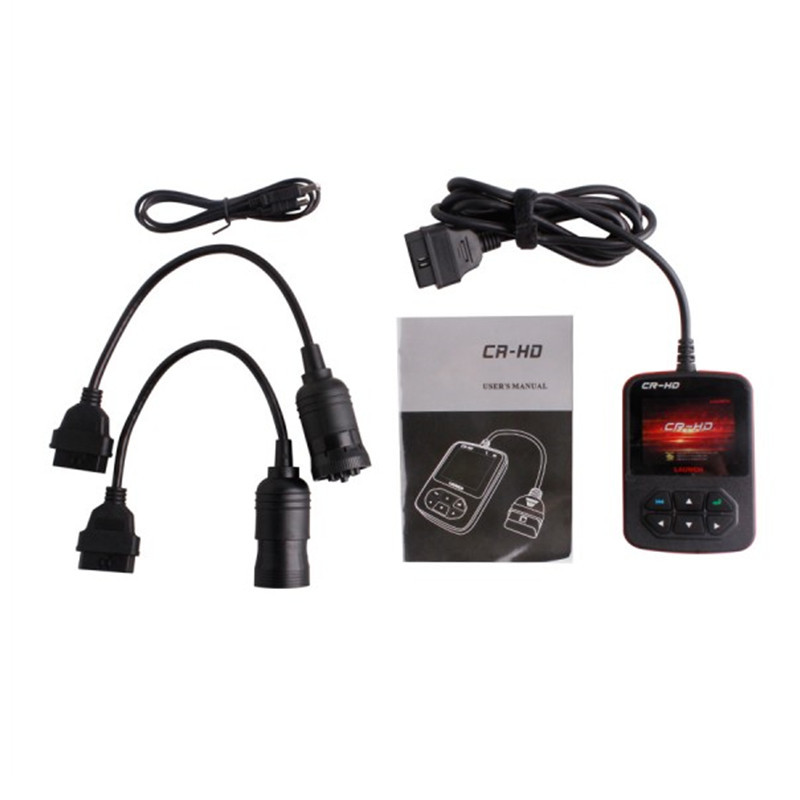

Package list:

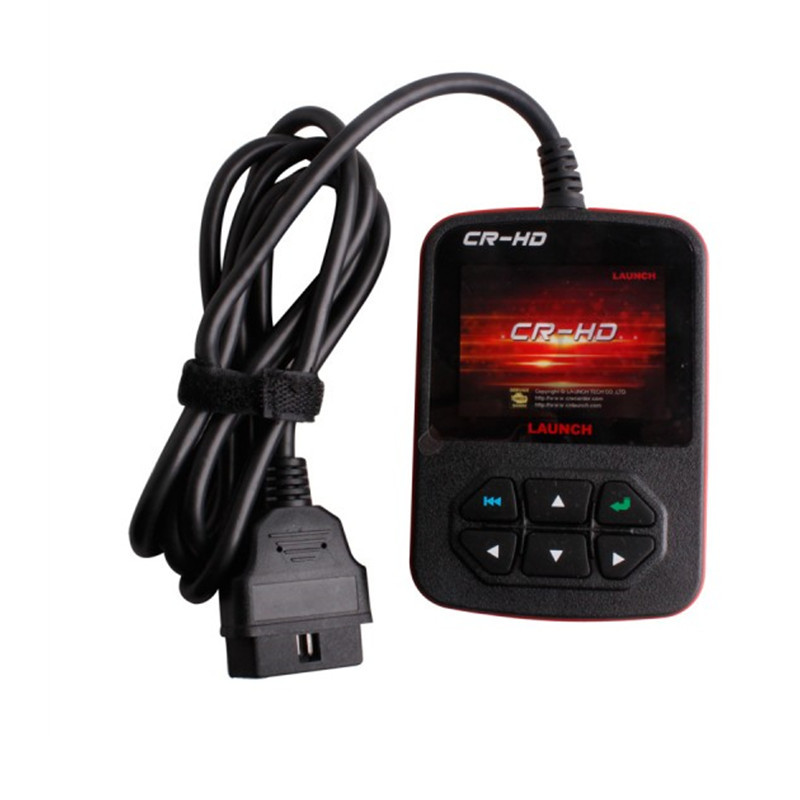

1pc x Launch Creader CR-HD heavy duty main unit

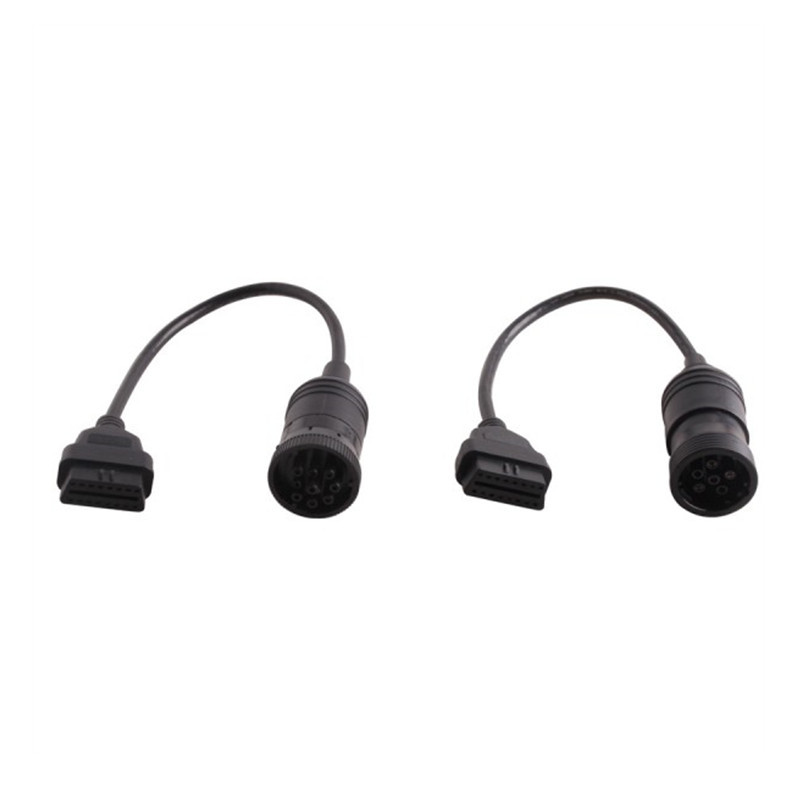

1pc x OBD-6S Cable
1pc x OBD-9S Cable
1pc x USB Cable
1pc x User's manual

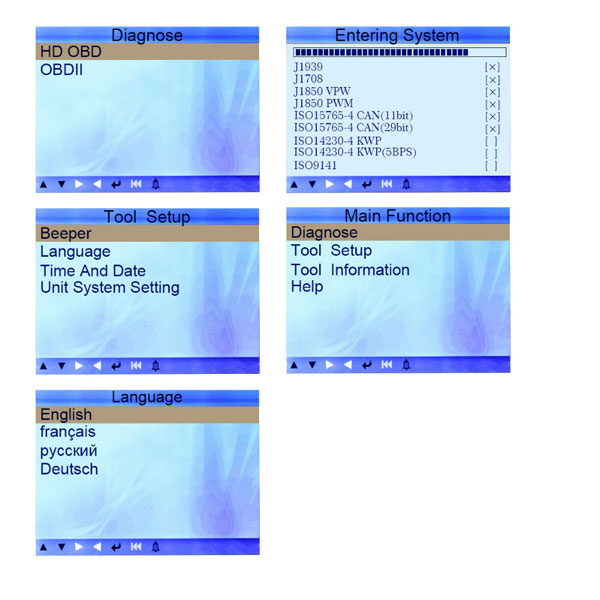

Launch CR-HD Truck Scanner Menu Display:
