U581 OBD Scanner CAN BUS OBD2 Memo Scanner Car Engine Diagnostic Scan Tool
The U581 Scanner is for real-time automotive diagnosis based on the OBD 2 & CAN-BUS protocol. It offers Full Feature Scanning including 'LIVE DATA'. By simply plugging it into your vehicles diagnostic socket, you will be able to Read all Trouble Codes & Definitions related to the "Check Engine Light", Save & Review results, Reset the trouble light, Monitor & Freeze-Frame Data,and more. Also retrieves the VIN (vehicle identification number) on supported vehicles.
U581 Scanner Support System:
Misfire, Fuel System, Comprehensive components (CCM), EGR System, Oxygen sensor, Catalyst, Evaporative, O2 Sensor heater, Secondary air, Heated Catalyst, A/C System and many more.

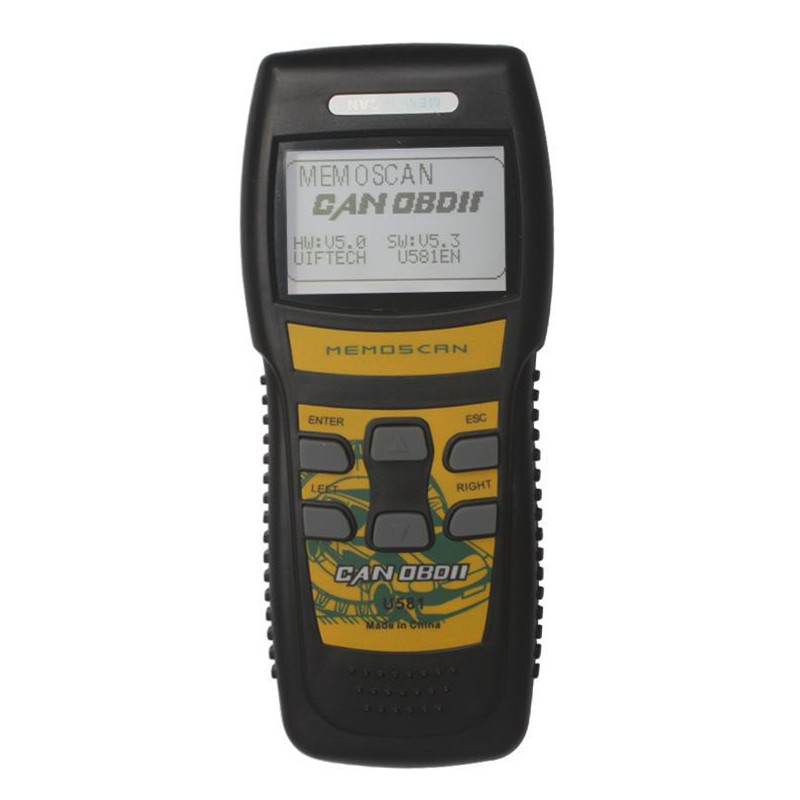

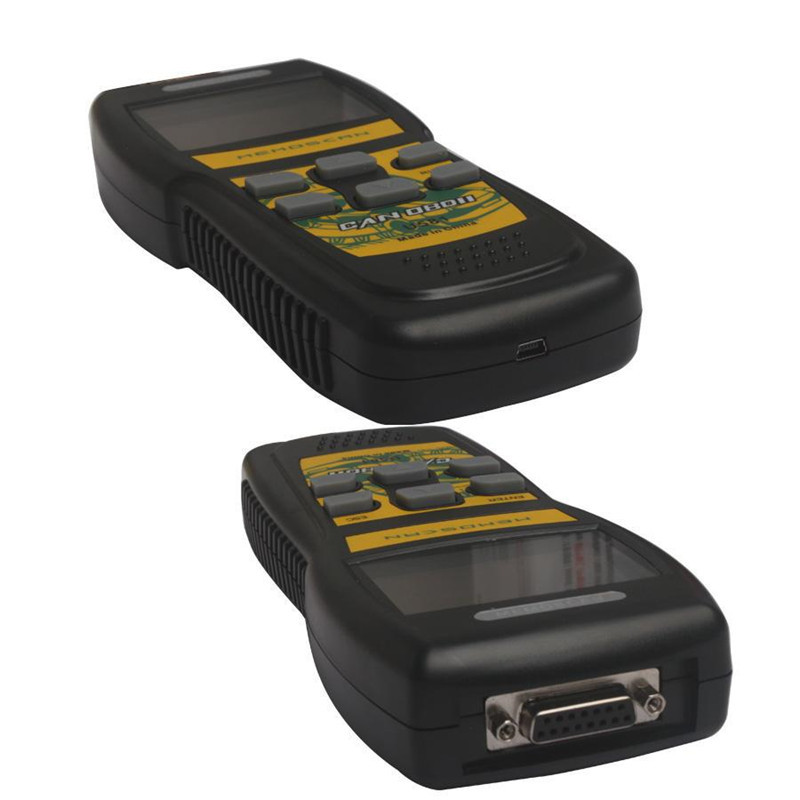

U581 Scanner Description:
1. LCD Display -128x64 pixel display with contrast adjustment, Backlit.
2."ENTER" key - for selection of different functions.
3."ESC" key - to go back to the previous screen.
4."UP"& "DOWN" arrows - to move the selection pointer and scrolls up or down the menu.
5."LEFT"&"RIGHT" keys - for selection of responses and move cursor.
6. On/Off Power Button - for performing software update process.
7. OBDII connector cable - for connecting scan tool to the vehicle's Data Link Connector "DLC".
8. Battery compartment.
U581 Scanner Feature:
1.Works on all 1996 and newer cars & light trucks that are OBD II compliant (including the VPW, PWM, ISO, KWP 2000 and CAN protocols).
2.Reads and clears generic and manufacturer specific Diagnostic Trouble Codes (DTCs).
3.DTCs definition displayed on the LCD screen, no need to cross-reference with code book.
4.Reading Live Data
5.Reading Freeze Frame Data.
6.Testing I/M Reading Status.
7.Reading Vehicle Info –VIN (most vehicles built 2000 & up).
8.Rescanning Data.
U581 Scanner Vehicle Coverage:
GM '96 - Current Year (OBD-II)
Ford '96 - Current Year (OBD-II)
Chrysler '96 - Current Year (OBD-II)
Toyota '96 - Current Year (OBD-II)
Honda '96 - Current Year (OBD-II)
NISSAN '96 - Current Year (OBD-II)
All other Asian and European '96 - Current Year (OBD-II)
All new CAN protocol cars.
U581 Scanner Specifications:
1. Display-Backlit LCD: 128*64 pixel display
2. Enter: selects displayed
3. Exit: go back to the previous screens
4. Up/down: arrows-moves the selection pointer and scrolls up or down
5. LEFT/RIGHT: arrows-Select responses and moves cursor
6. OBDII connector cable: connect car and the scan tool
14. Operating Temperature: 0 to 50
15. Internal Power: 9v Cell
16. External Power: 10.0 to 15.5 vols provided via vehicle battery
17. Length x Width x Height: 195mm x 81mm x 32mm

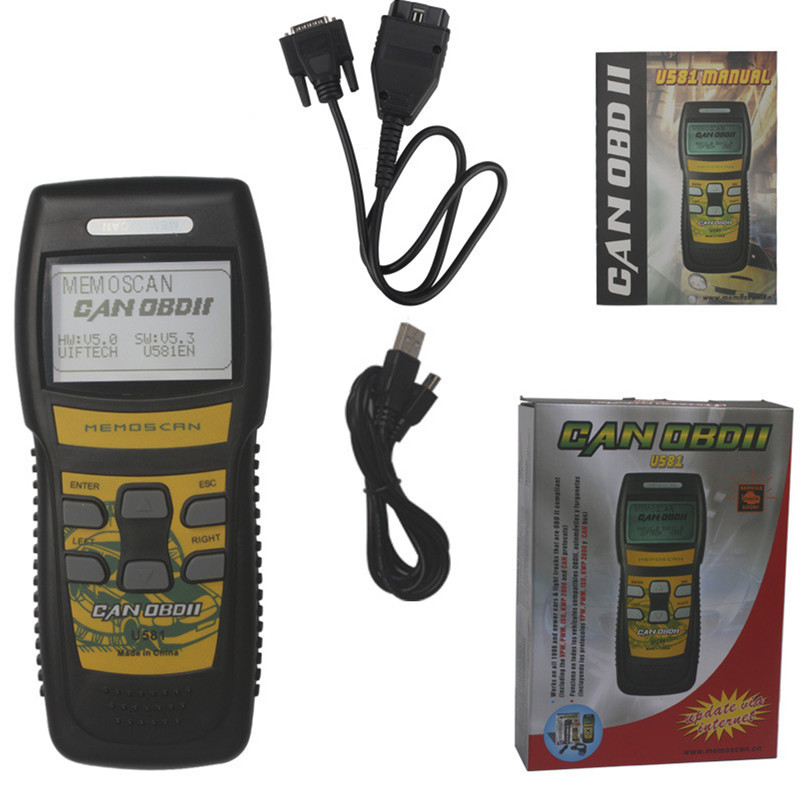

U581 Scanner Package Including:
1pc x U581 Super CAN OBDII/EOBDII Memo Scanner

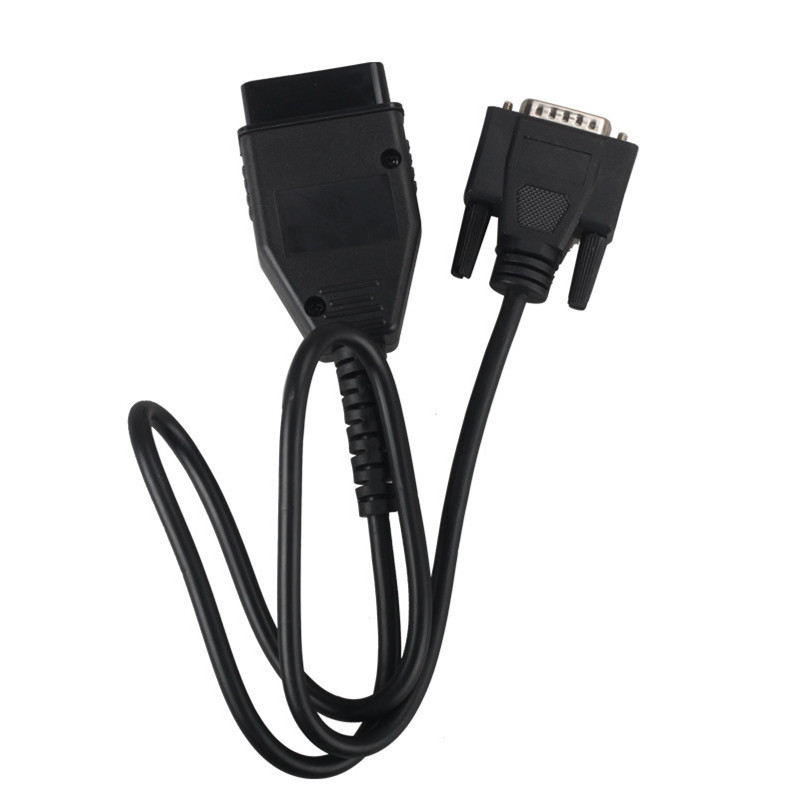

1pc x 1500mm length OBDII Connecting Cable
1pc x COM Cable for connecting U581 to PC
1pc x User Manual
1pc x DTC definition CD
1pc x Durable Nylon Storage Case
