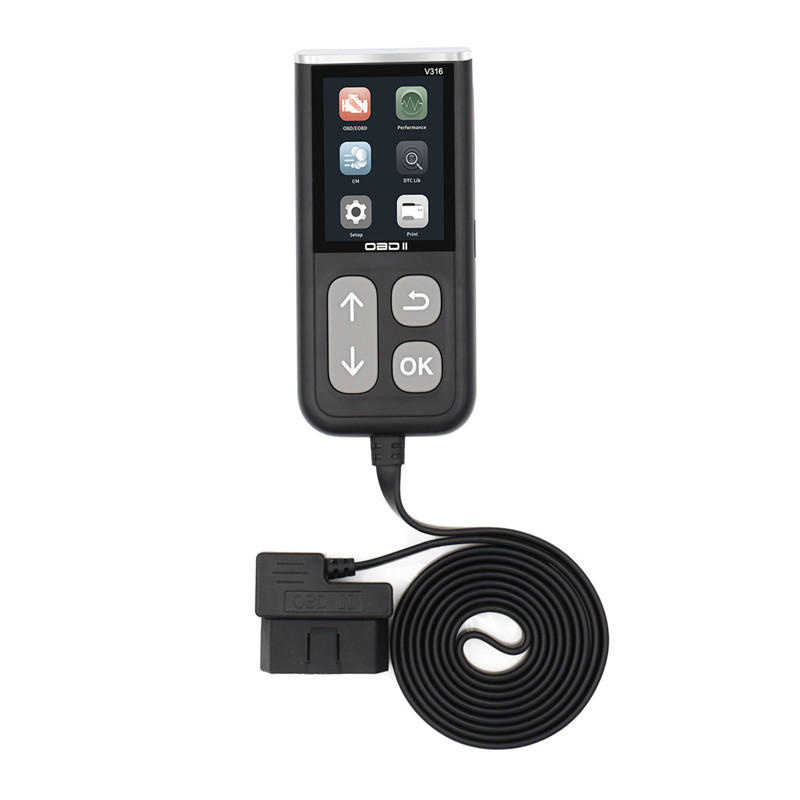

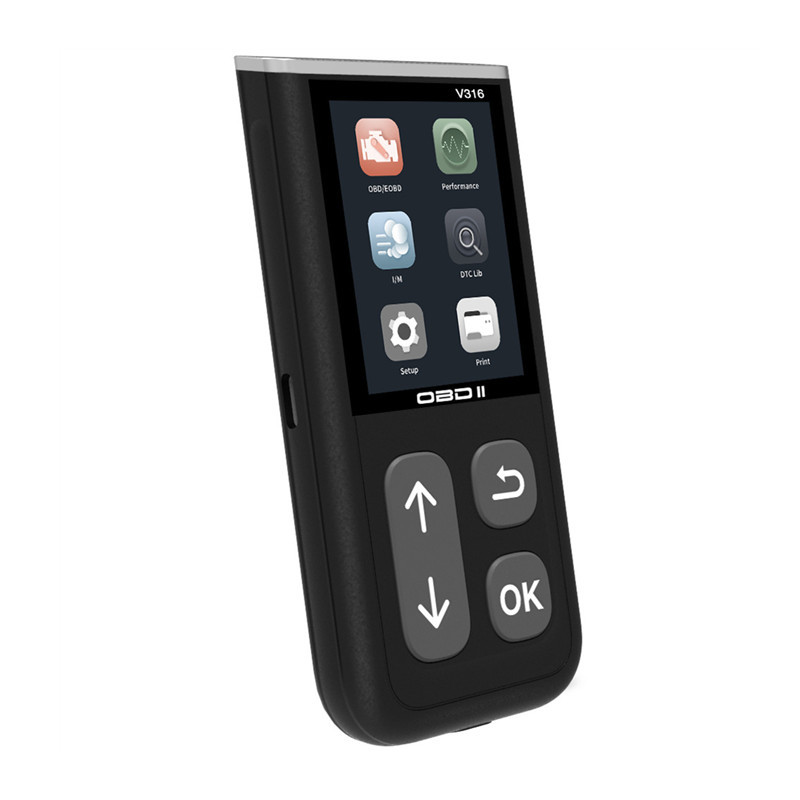

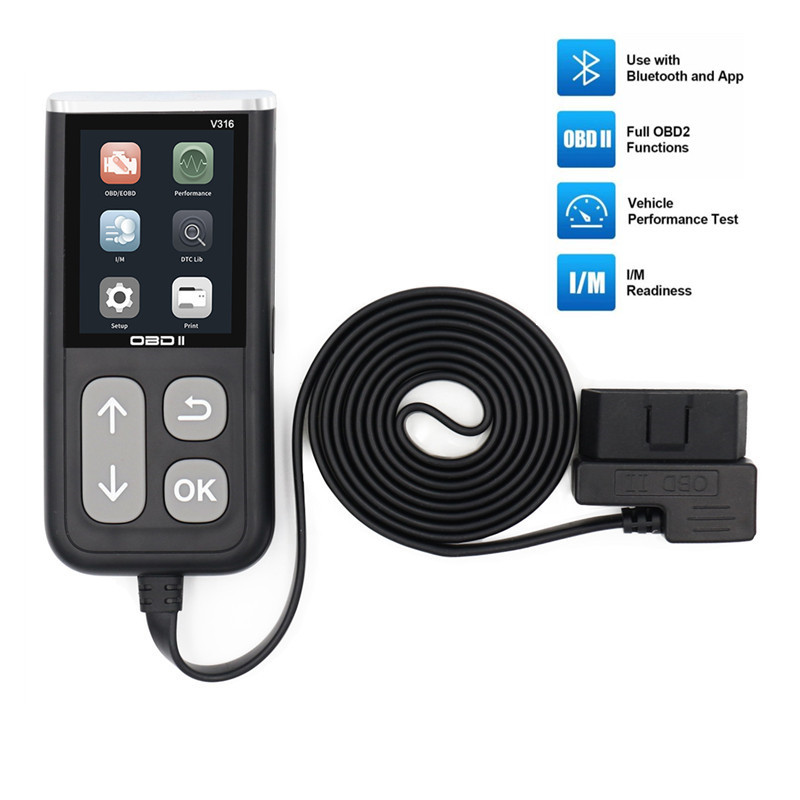

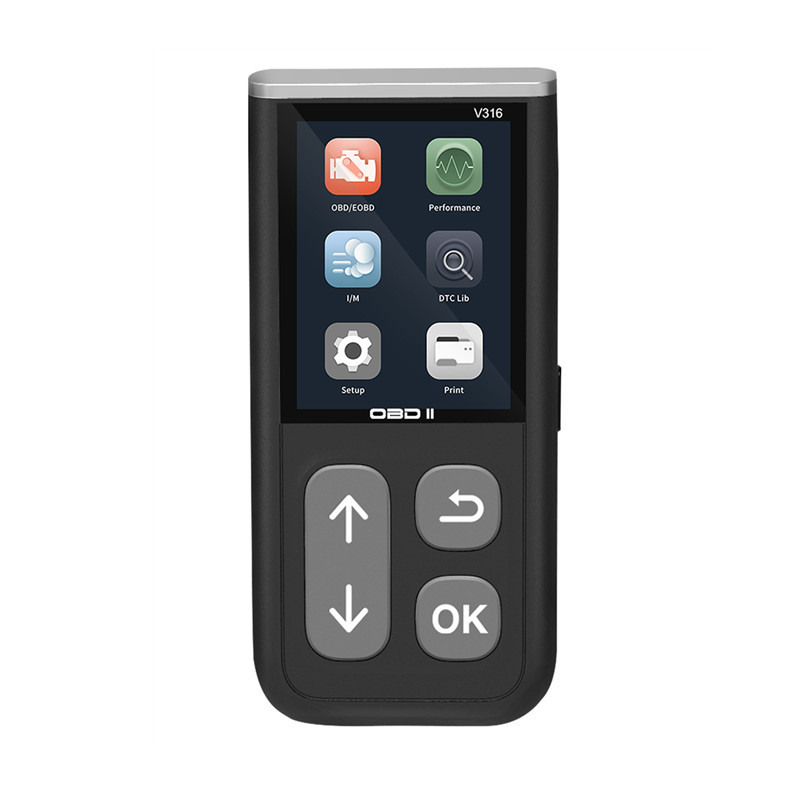

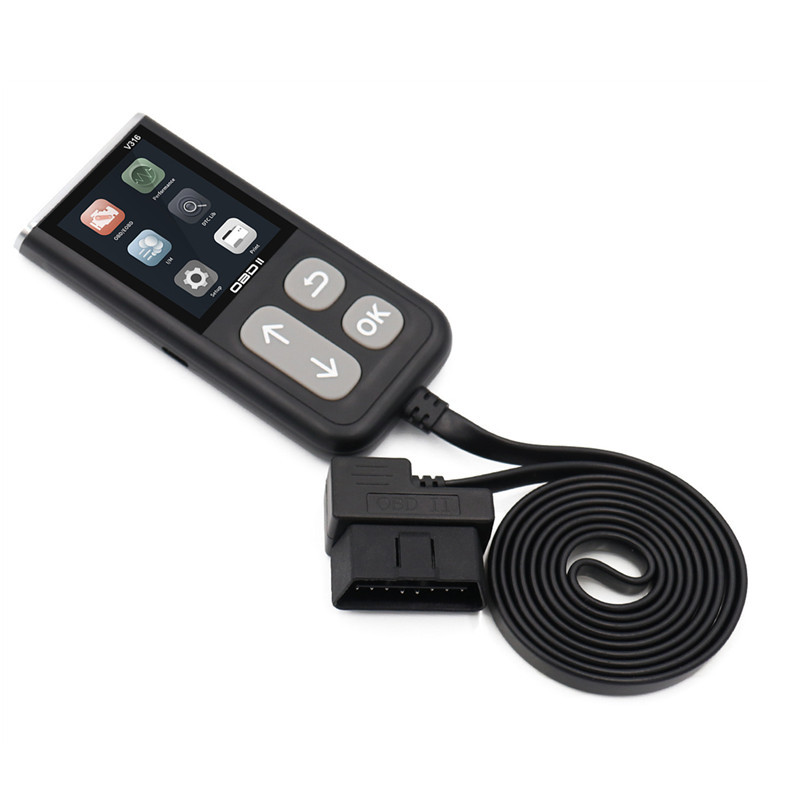

V316 OBD2 Scanner OBDII Code Reader Bluetooth Engine Fault Code Reader Scanner CAN Diagnostic Scan Tool
V316 OBD2 Scanner Description:
【New Upgrade OBDII Scanner】The 316 OBD code reader is capable of performing multiple diagnostic functions like determining the cause of the Engine Light, Read/Erase Code, View Freeze Frame, I/M Readiness, Vehicle Information, Data Stream, BAT-Battery Detection, DTC lookup, Real Time Curve(Car Speed, Calculate Load Value, Engine Coolant Temp, Engine RPM), efficiently troubleshoot the Check Engine Light and the diagnostic trouble codes.
【Lightweight & Easy to Operate】 OBD plug and play, No battery or charger is required as it directly gets power from vehicle DLC. One-click to meet all your car tests, Fast scan and clear trouble codes, very easy to use, even a beginner can use this unit to read the error code, with what displayed on the screen. You can find out what the problem is and fix the easy ones yourself but don't worry about going to the 4S shop for too expensive repairs, saving your money.
【Strong Compatibility】Support 7 languages: Deutsch, Dutch, English, Spanish, French, Italian, Chinese. No matter where are you from, It can always help you. Our OBD scanner is compatible with all 1996 and newer model cars sold in the US, Europe, and Asia. Support nine OBD II/EOBD standard protocols and support OBD functions such as vehicle fault diagnosis and real-time data streaming;

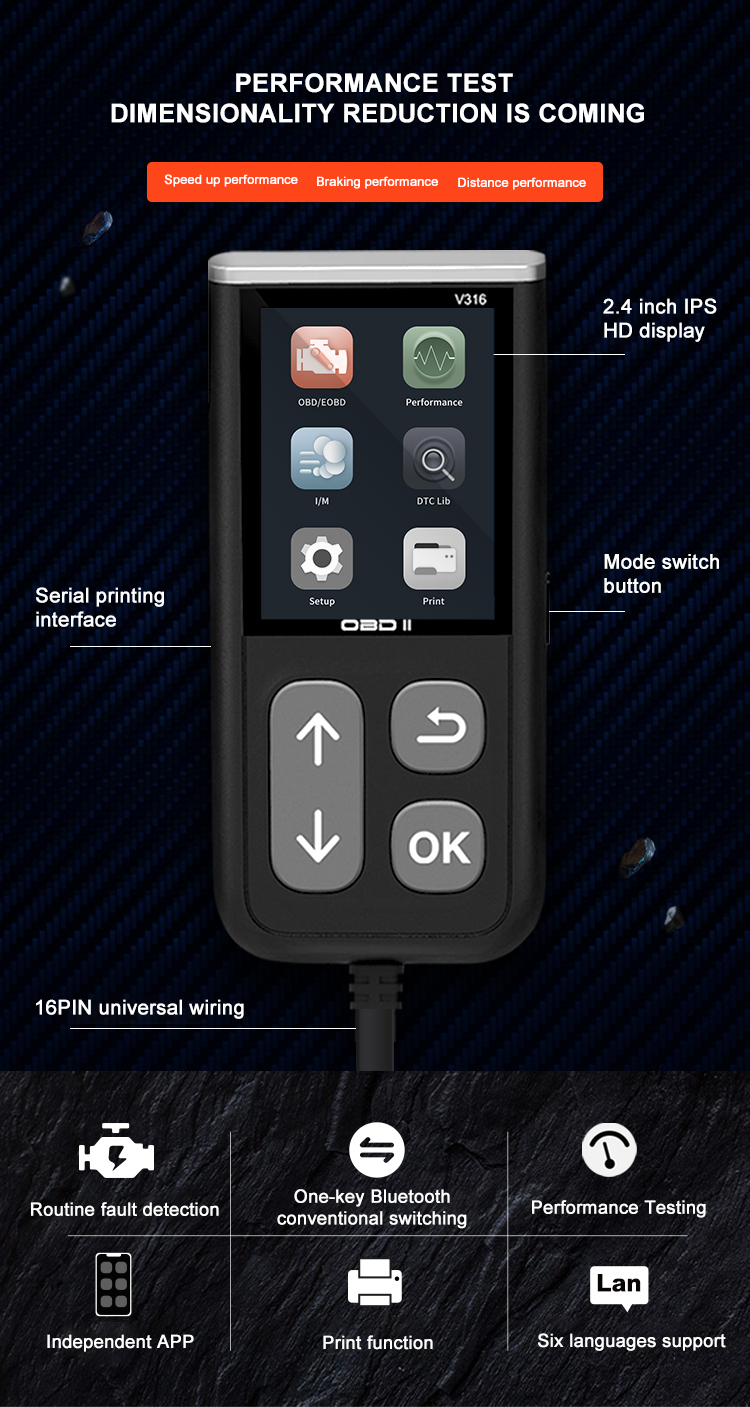

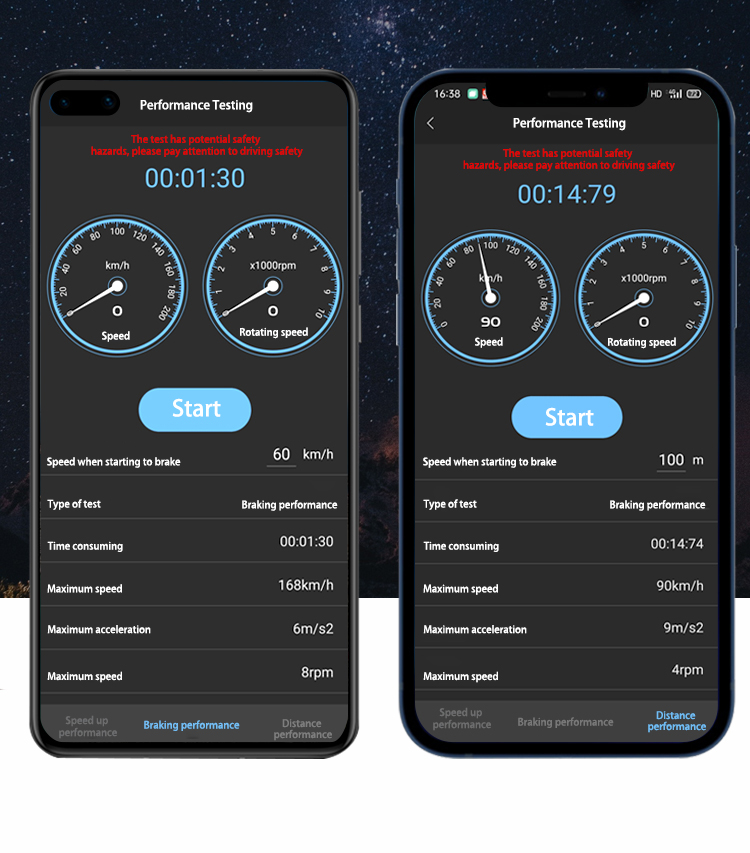

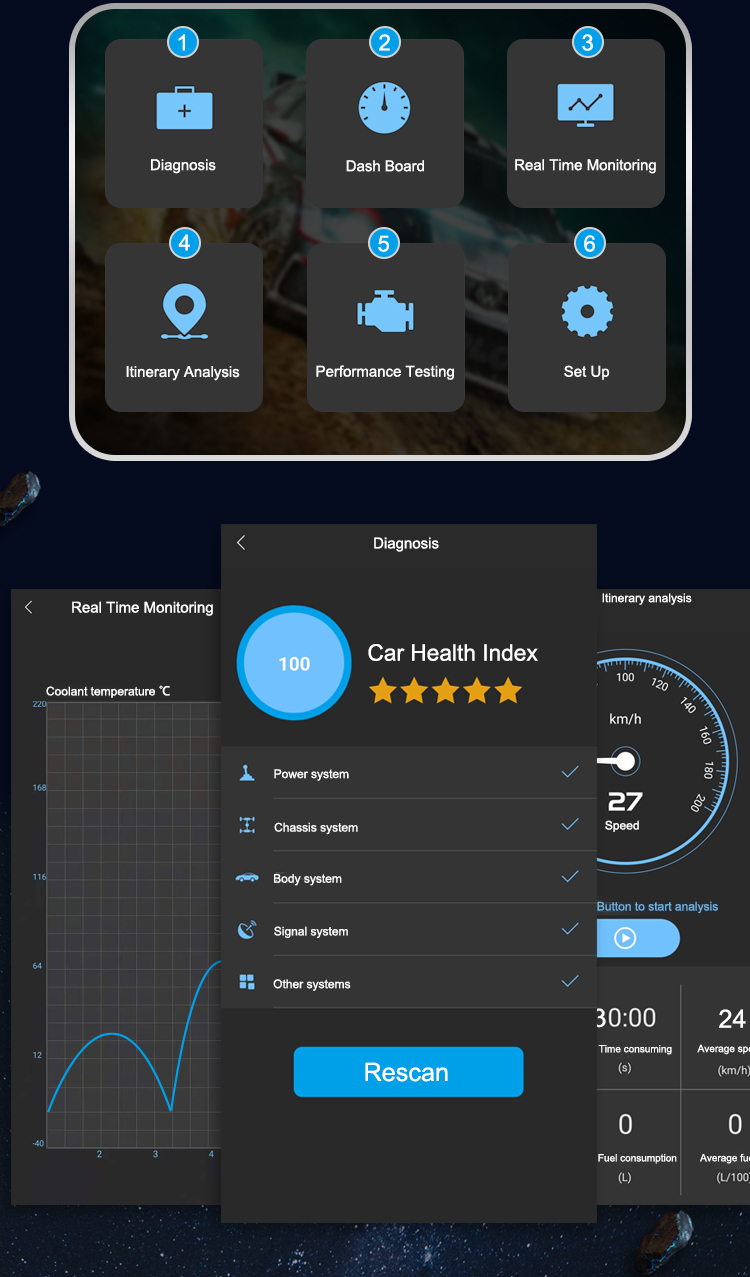

【With Bluetooth and can be used with mobile phone, LCD Display 】Vehicle code reader designed with a clear display LCD screen (320*426 resolution) ，Simple button operation Settings, One - click to meet all your car tests .You can download the mobile app, and you can see the condition of your car on your mobile phone.
【Minimum Maintenance Costs】 With this scanner for car, you can easily check the car system, early find vehicle Sub-health, eliminate the potential safety problems, protect the interests of the owners. It can satisfy your basic need for troubleshooting the problems quickly and effectively. Save your time and money!
V316 OBD2 Scanner Key Feature:
1.Reads and clears check engine light codes, both generic and manufacturer-specific, and resets monitor.
2.Built-in DTC look-up library for manual retrieval and code definition.
3.I/M Readiness to test misfire, fuel system and Comprehensive component.
4.Displays all data stream items or selects any item of live data for graphing.
5.Views freeze frame data and shows vehicle parameters recorded by ECU when an emission-related fault occurs.
V316 OBD2 Scanner Protocol Support:
1. SAE J1850 PWM (41.6Kbaud).
2. SAE J1850 VPW (10.4Kbaud).
3. ISO9141-2(5 baud init, 10.4Kbaud).
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud).
5. ISO14230-4 KWP (fast init, 10.4 Kbaud).
6. ISO15765-4 CAN (11bit ID, 500 Kbaud).
7. ISO15765-4 CAN (29bit ID, 500 Kbaud).
8. ISO15765-4 CAN (11bit ID, 250 Kbaud).
9. ISO15765-4 CAN (29bit ID, 250 Kbaud).
V316 OBD2 Scanner Specification:
Product mode: OBDII code reader
Product type: V316
Product dimensions: 120*57*15.5mm/4.7x2.2x0.6in
Product Weight: 139g/4.9oz
Storage temp: -25℃〜70℃
Operating voltage: DC 12V provided via vehicle
Working current: 57mA
OBD connector: 16 PIN OBDII, Bluetooth
V316 OBD2 Scanner Warm Tips:
1. Must be 16 PIN OBD II port, or Bluetooth connection;
2. This OBD2 scanner only supports petrol vehicles;
3. This scanner is valid only for the engine system, not for airbags, ABS and other systems.

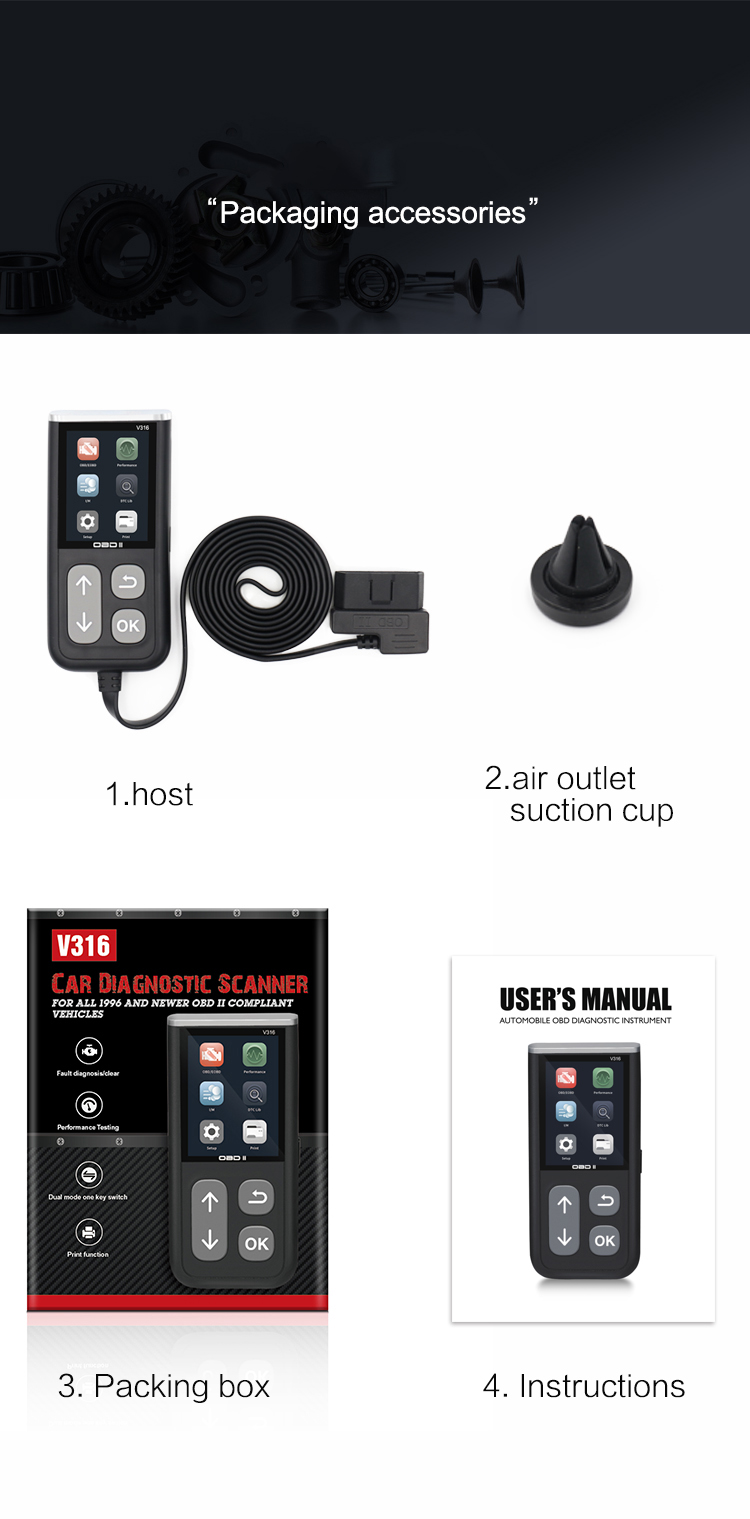

V316 OBD2 Scanner Package list :
1x V316 Car Engine Diagnostic OBDII Reader

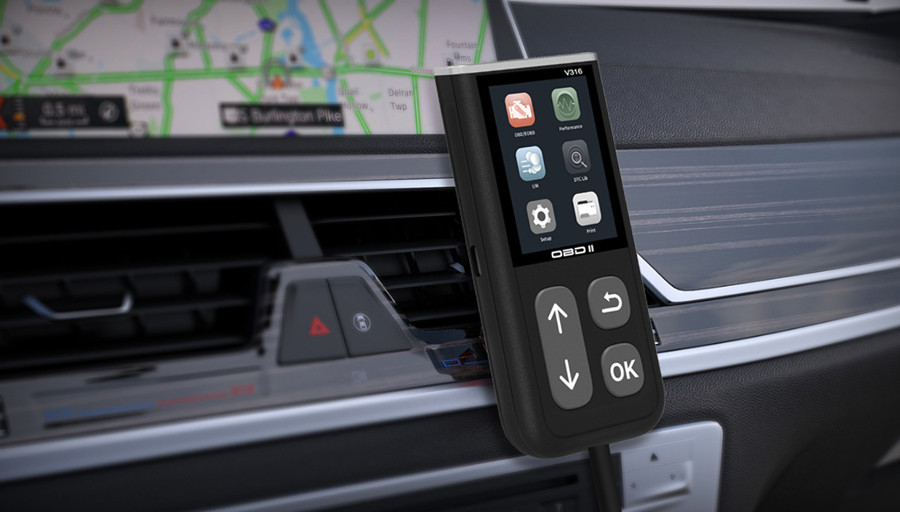

1x Air Outlet Sucker
1x User Manual
