Viecar 4.0 OBD2 Bluetooth Scanner For For Android/IOS With Car HUD Display Function Support Multi-brands Cars
Viecar 4.0 Highlights:
1.Viecar 4.0 is a multifunctional and Comprehensive car electronic products with smallest body and more chips in the world.
2.Viecar 4.0 was designed by Bluetooth 4.0 dual moudle which could support IOS and Android Device.
3.Viecar 4.0 transfers data rapidly, with low power dissipation advantage and saves power.
4.Viecar 4.0 including fuel consumption analyze and assessment could save oil save money for us.
5.Viecar 4.0 also record driving behavior, analyze car information, suggest improvement to help us to correct our bad driving habits.
6.By connecting cars ECU and computer it realize 360 degree whole car testing could find out the fault code earlier to help us to deal with it in time.
Notes:
Some customers have feedback that our products will not connect when they connect to IOS via BT-Wireless in the Setting of phone,please Remember the connection method，because the BT4.0-Wireless connection is different from normal BT-Wireless when Viecar connect IOS
1.Open the BT-Wireless first(But please do not connect the product to the setting BT-Wireless page of your phone,this way is wrong！！！)
2.Open the software(like AUTO Doctor)
3.Choose "Extras"，then click "Connectivity "，choose"BT-Wireless"，and click "Device",choose "Viecar BLE"
4.Connect BT-Wireless in the"Connectivity "，then close the software or refresh software,open software again,then connect to the car again

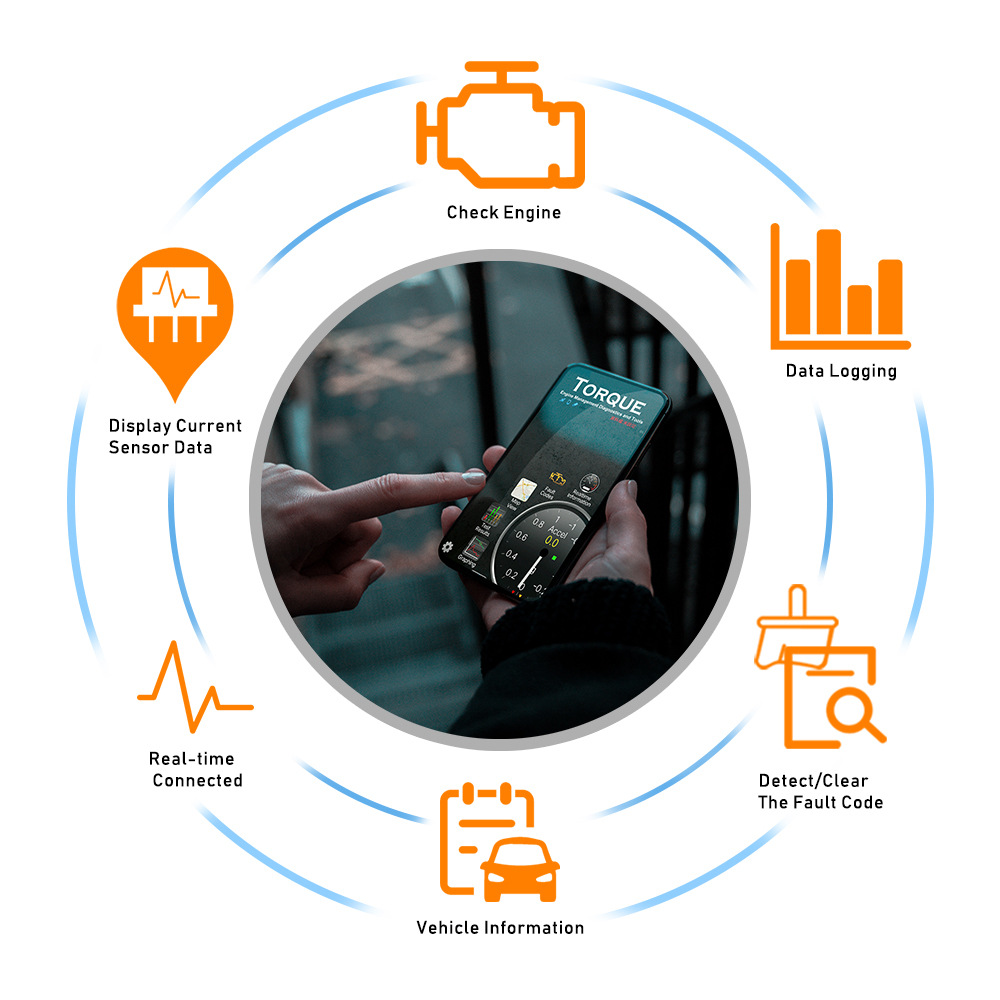

Software Features:
Read error diagn
ostic codes - General and manufacturers special use, and display their meaning
(Database has over 3000 generic code definitions)
Clear the error code and shut off the MIL ( "Check Engine" light)
Display current sensor data, comprising:
Engine revolutions p
er minute (RPM)
The calculated load value
Coolant temperature
Fuel System Status
Speed
Short-term fuel situation
Long-term fuel situation
Intake manifold pressure
Injection advance time
Intake air temperature
Air flow rate
Absolute throttle position
Oxygen-sensing voltage associated with the short-term fuel state
Fuel System Status
The fuel pressure
Fuel consumption monitoring and many other data
Supported OBD-II Protocol:
ISO 9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
Compatible software:
Window: ScanMaster-ELM, ScanTool.net, PCMSCAN
Android: Torque_Pro, DashCommand, EOBD2
Symbian: OBDScope
Viecar 4.0 Specifications:
Means of communication: Bluetooth Dual (2.0/4.0)
Software platform: Android/ IOS
Power: 9V-16V
Electric current: 45mA
Temperature: -40 C~85 C
Humidity: below 60%
Size: 45mm*40mm*18mm
Model: for OBDII cars
Package List:
1pc x Viecar 4.0 Obd2 Bluetooth Adapter

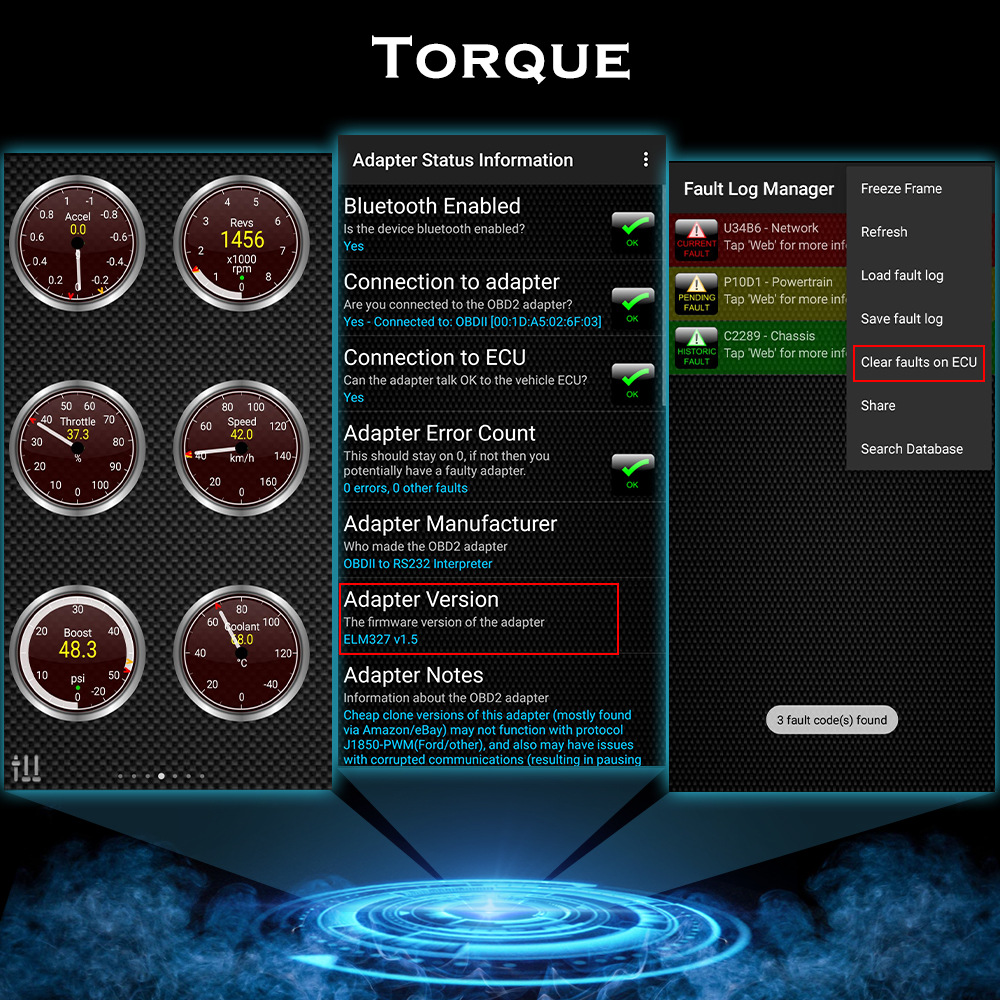

Viecar 4.0 Software Display:
