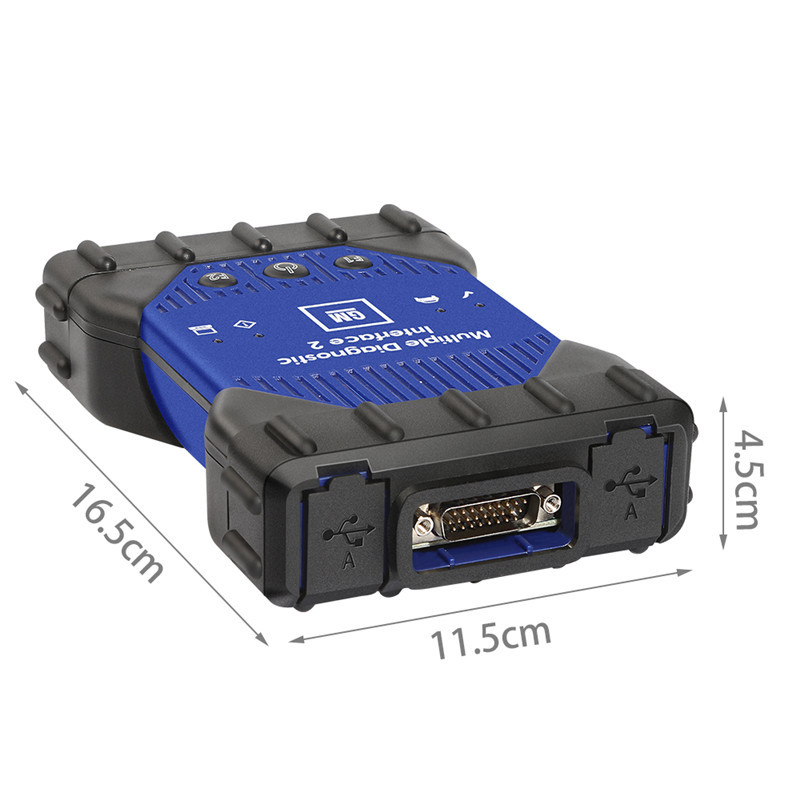

WIFI GM MDI 2 MDI II scan tool GM diagnostic tool with V2025.04 GDS2 Tech2Win Software Sata HDD

WIFI GM MDI 2 MDI II scan tool GM diagnostic tool with V2025.04 GDS2 Tech2Win Software Sata HDD


Wifi GM MDI 2 Scanner Highlights:

Software version: V2025.04

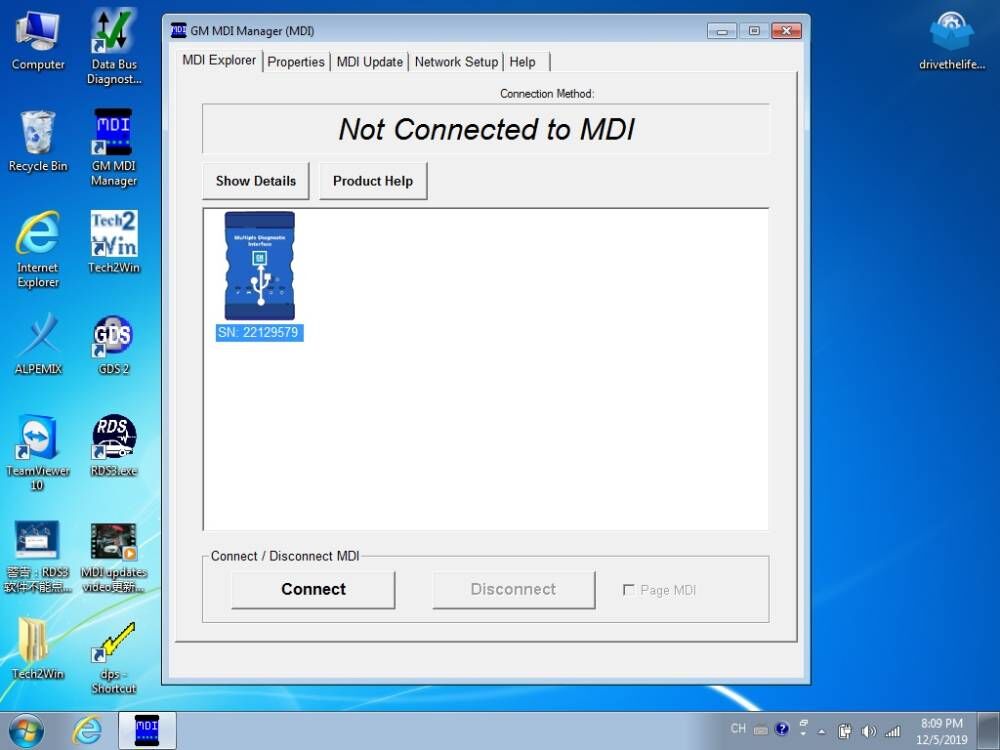

GM MDI Manager version: V2024.07
Update time: GM Global 2024.07
High speed and low speed GMLAN
Supported Protocol: UART, Class 2, KWP2000,GMLAN (CAN)
Used for: Both China GM MDI USB version and GM MDI WiFi 2 version scanner
Supports online programming function with GM SPS Subscription

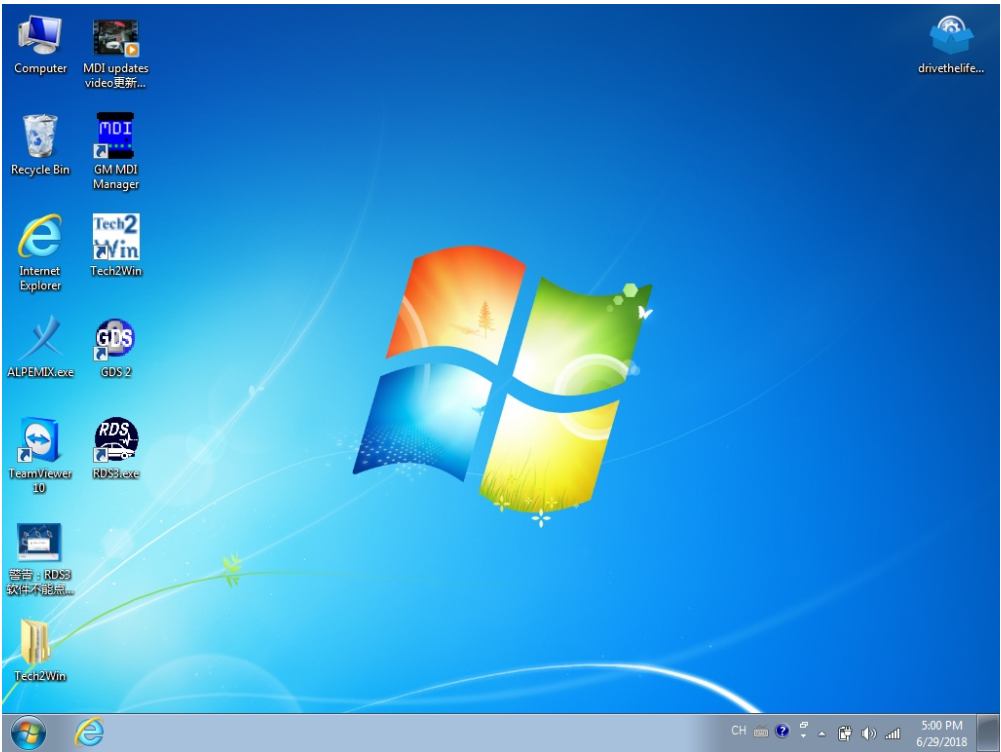

Easy to use: Insert the HDD(with software installed) into your laptop; the software can be used directly, no need activation.
For all GM CHEVROLET BUICK CADILLAC GMC HUMMER PONTIAC SAAB Vauxhall/Opel 16 pin vehicles from 1996 to 2023.

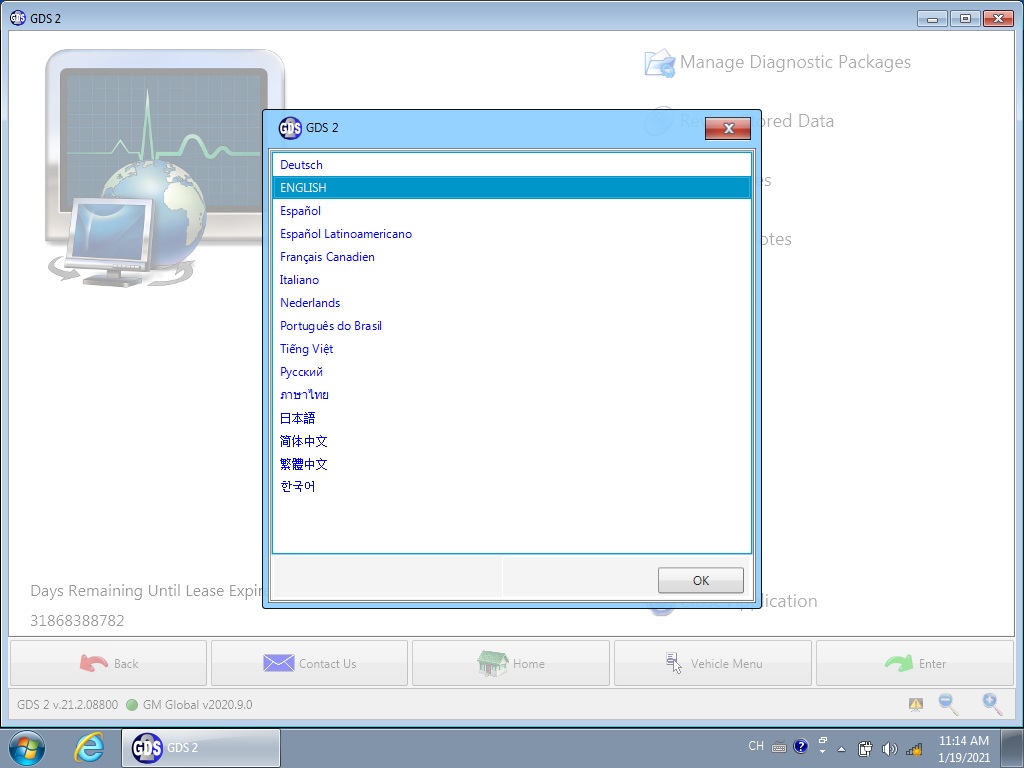

Multi-language: German, Spanish, French, Italian, Dutch, Portuguese, Vietnamese, Russian, Thai, Japanese, Korean, English, Chinese

Kindly Note:
Vehicles before 2009 can use Tech2win software do offline programming, after year of 2009 can only use GM online account to do online programming.



GM MDI 2 Description:

The Multiple Diagnostic Interface 2 (MDI 2) is used by professional technicians as an aid in diagnosing and repairing automotive electrical and electronic systems. The MDI 2 is designed to connect the vehicle to a host PC computer application, which then functions through the MDI 2 for data transfer and Electronic Control Unit (ECU) reprogramming.
The newest pc-based GM Multiple Diagnostic Interface (MDI 2) offers increased processing power, security, and faster programming speeds on Global A and future
Global B vehicles.

The MDI 2 supports diagnostic applications: GDS 2, Data Bus Diagnostic Tool, and Tech2Win.
It also supports Pass-Thru programming applications: TIS2Web–SPS.
It replaces the first generation MDI, introduced in 2007, for Pass-Thru programming on current GM models.
The MDI 2 is backward compatible, so it can be used to perform Pass-Thru programming on all vehicles built since 1996 by means of the J1962 connector using a DLC cable.

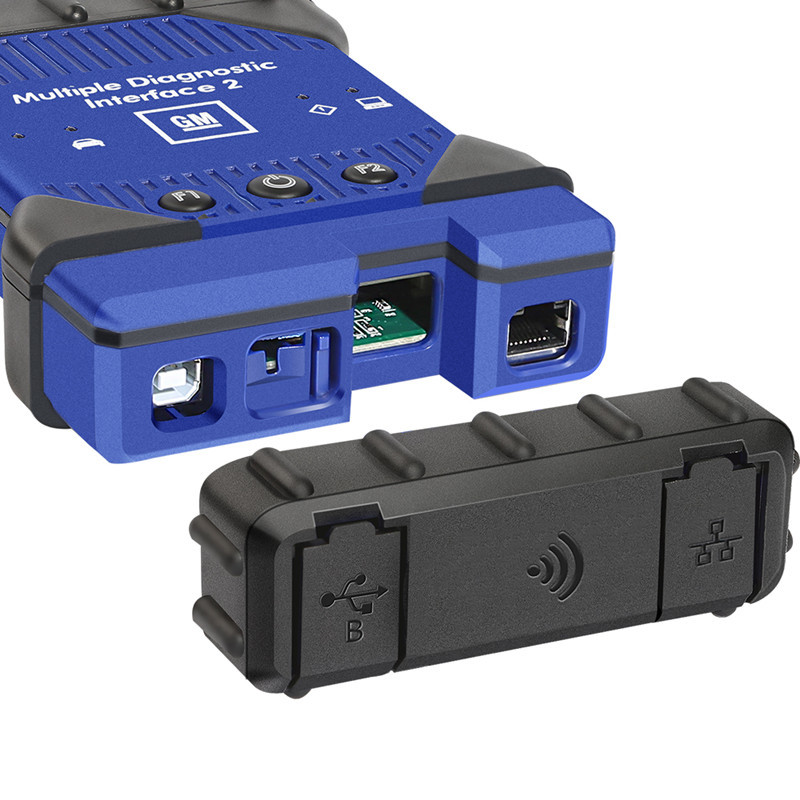

Connection between the MDI 2 and the PC can be accomplished via standalone (USB) and the dealership network (CAT5).


GM MDI 2 Scanner Function：

* Automatic vehicle recognition
* DTC reading and removal
* Complete list of live data streaming for all main ECU
* Recordable / playback of live data
* New software flash for existing ECU to fix drivability issues
* Programming and installation of new ECU (PCM, ABS, Instrument cluster, air bag, fuel pumps etc.,)
* Programming new keys
* Setting / removing speed limiters
* J2534 pass thru offering ECU re-flash and diagnostics for other vehicle manufacturers, when subscribed to their specified software
* More dealer specific functions


Difference Between Original MDI 2 and China MDI2:

What protocols does the GM MDI 2 support?

For immediate use — At present, vehicles have two buses on the 16 pin connector
(high speed and low speed GMLAN). The GM MDI communicates using all of the existing GM protocols, the same as the GM Tech2:
- UART
- Class 2
- KWP2000
- GMLAN (CAN)
Beginning with the 2008 model year vehicles, Pass-Thru will be the only programming method available. (Remote will continue to be available for previous vehicle

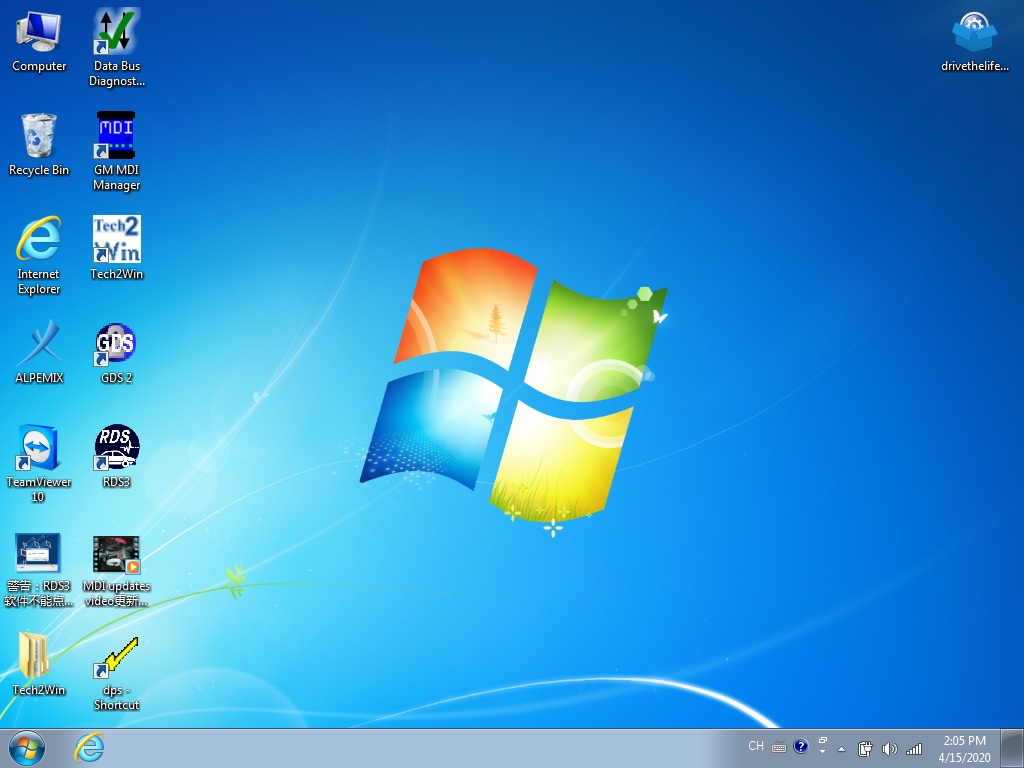

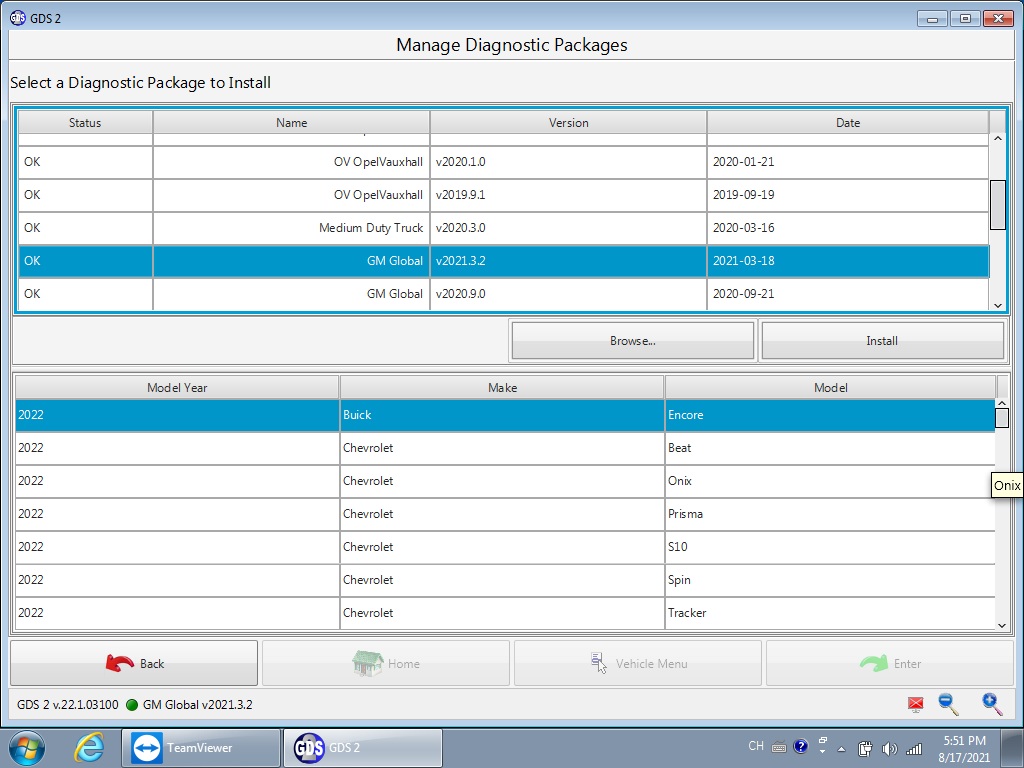

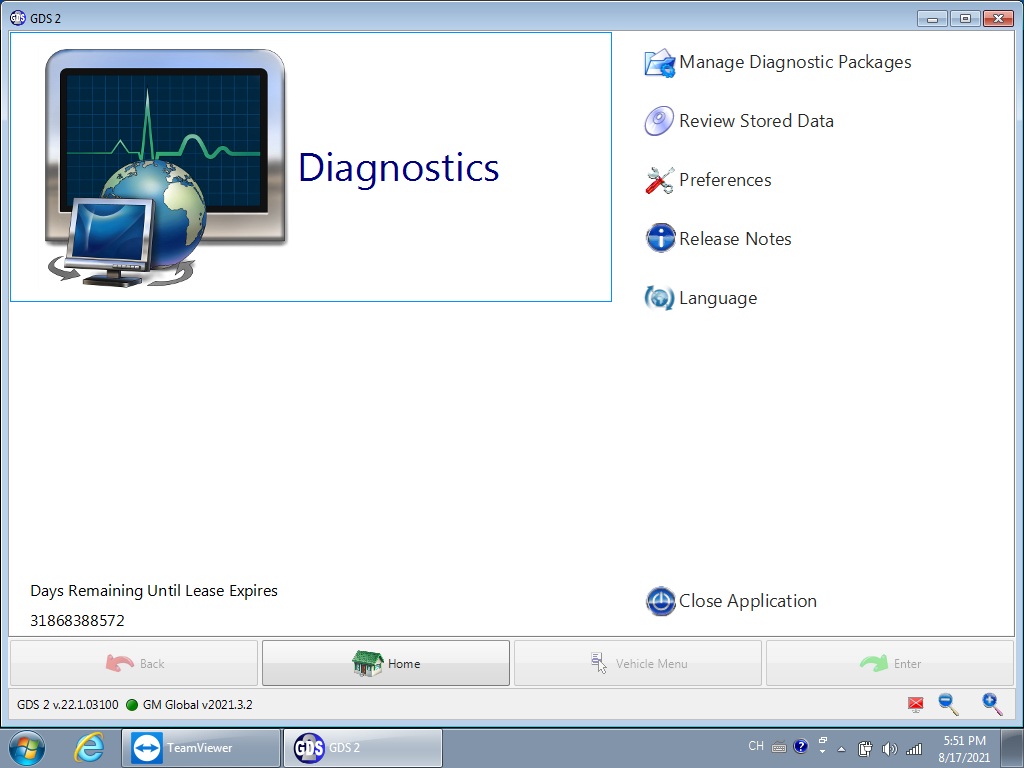

When you test after 2010 year gm car, you can use gm gds2 software:

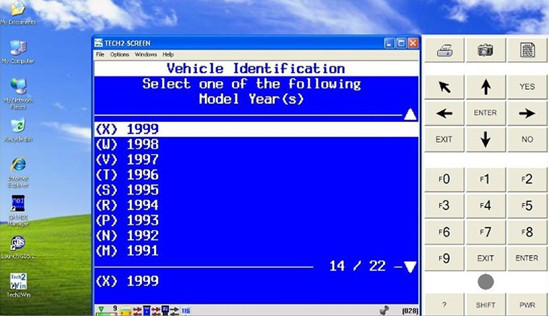

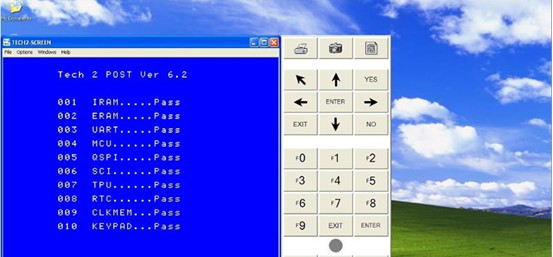

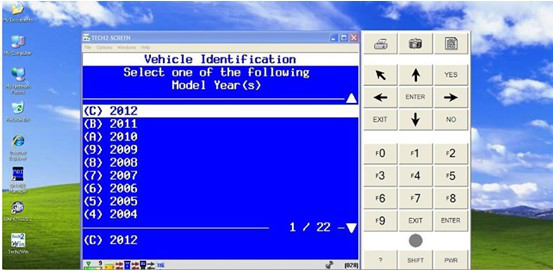

When you want to test before 2010 year GM car, you can use the tech2win software to test it,run fast and stable:

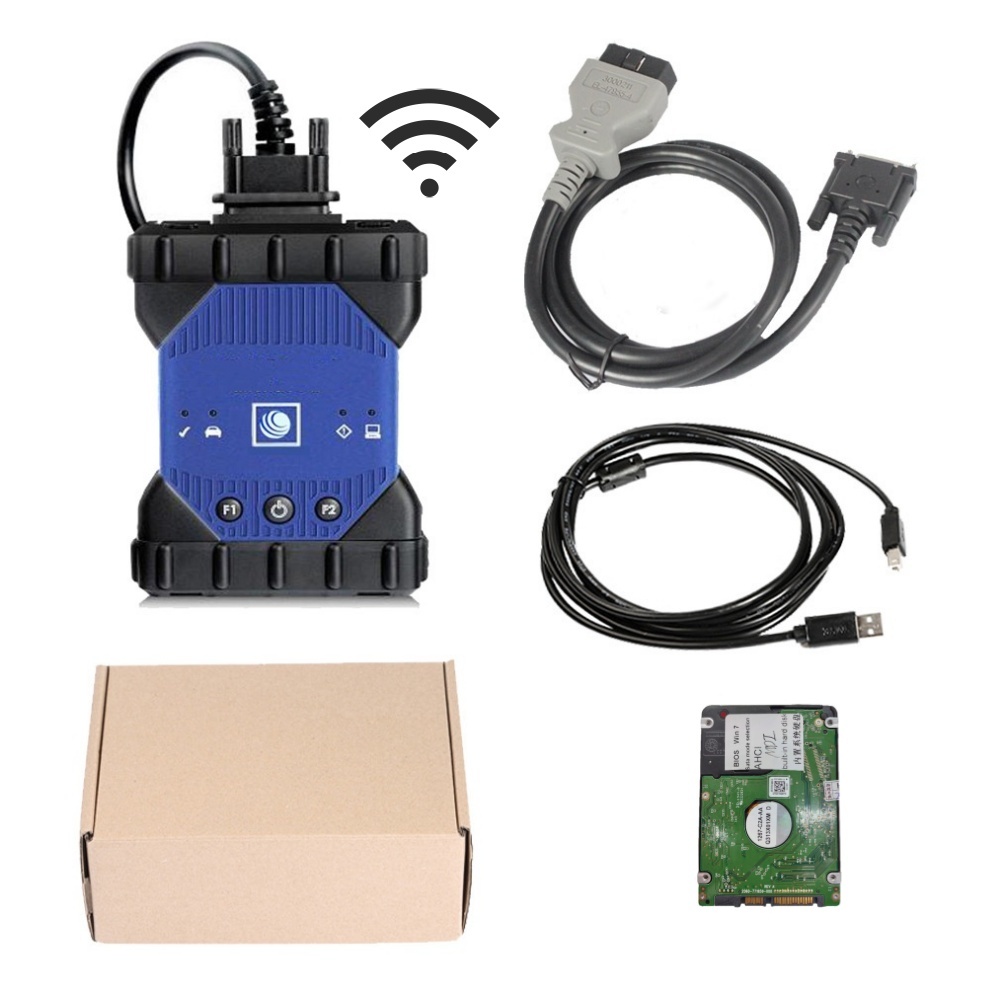

GM MDI 2 Package List:

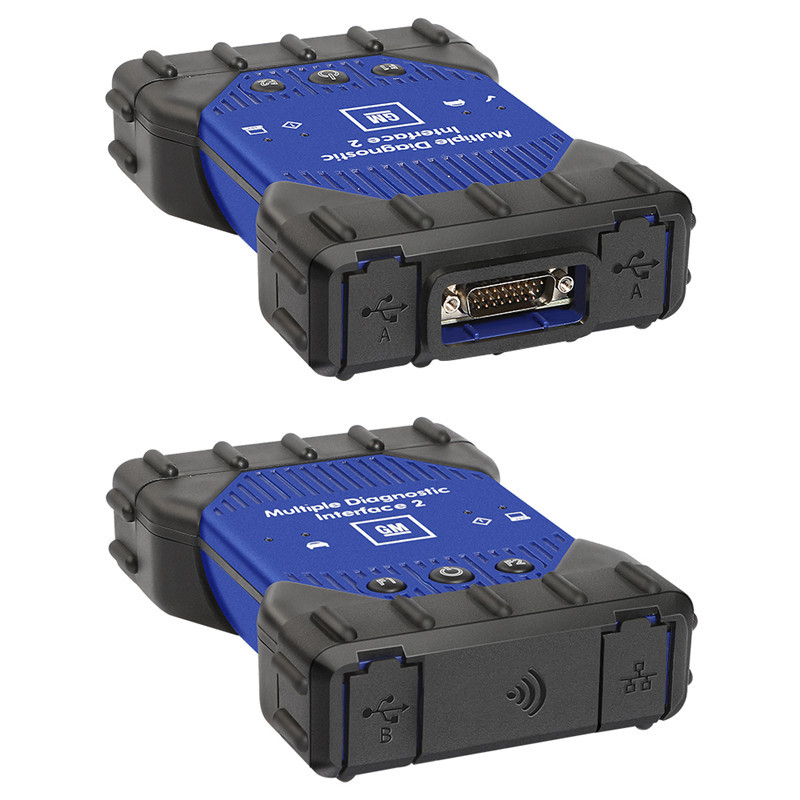

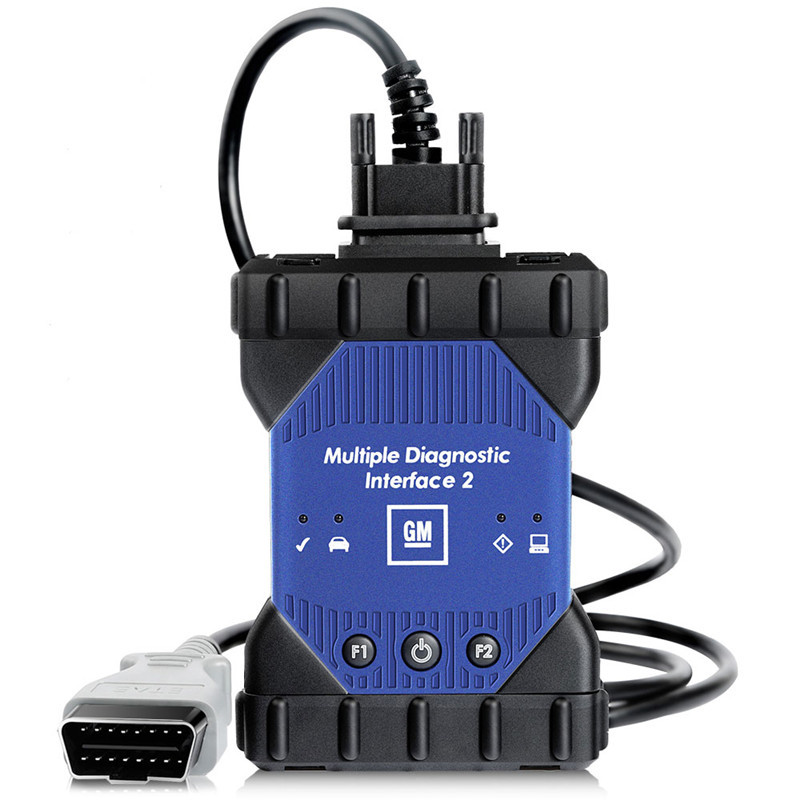

1pc x GM MDI2 Main Unit

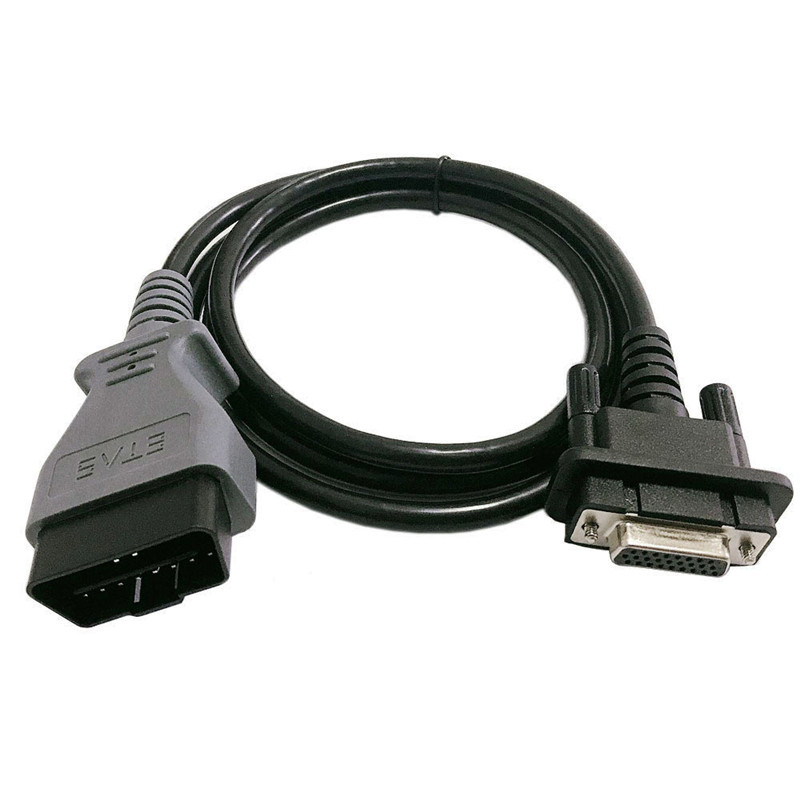

1pc x DLC Cable SAE J1962
1pc x 10-ft USB A to USB B Cable
1pc x SATA HDD Software(Option)
